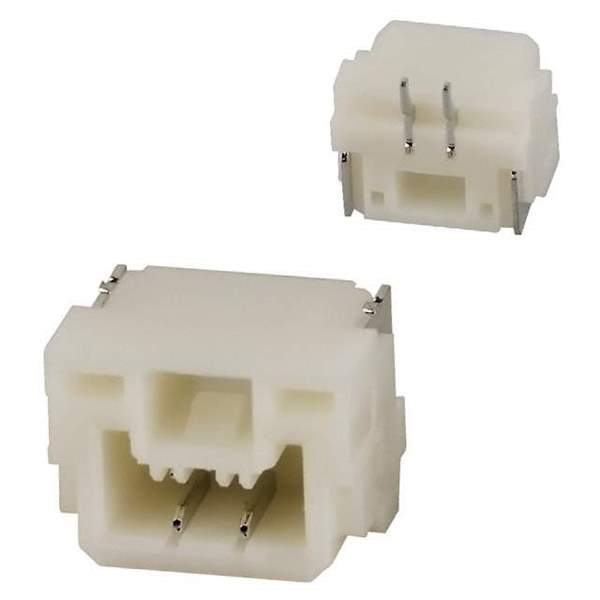

BM02B-GHS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM02B-GHS-TBT(LF)(SN)

Part No BM02B-GHS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Circular Connectors - Housings
Description 2 Position Single Row 1.25 mm Pitch 50 V 1 A Header Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze, Tin
Contact Plating Tin
Current Rating 1 A
Height 4.05 mm
Housing Color Natural
Housing Material Nylon
Lead Free Yes
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Number of Contacts 2
Number of Positions 2
Number of Rows 1
Orientation Straight
Packaging Cut Tape
Pitch 1.25 mm
REACH SVHC No SVHC
RoHS Compliant
Termination SMD/SMT
Voltage Rating 50 V
Voltage Rating (AC) 50 V
Wire/Cable Gauge 26 AWG
Win Source Part Number 963718-BM02B-GHS-TBT(LF)(SN)
Categories Circular Connectors - Housings
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian BM02B-GHS-TBT(LF)(SN) CAD Model

Description

The JST Sales America Inc. 963718-BM02B-GHS-TBT(LF)(SN) is a 2-position SMD/SMT connector with a pitch of 1.25 mm.

  • Voltage Rating: 50 V
  • Current Rating: 1 A
  • Housing Material: Nylon
  • Contact Material: Bronze with a tin plating
  • Orientation: Straight
  • Housing Color: Natural
  • Operating Temperature Range: Between -25°C to 85°C
  • Lead-Free: Yes
  • Packaging: Cut tape
  • RoHS Compliant: Yes
  • Supply and Demand Status: Shortage
  • Wire/Cable Gauge: 26 AWG
