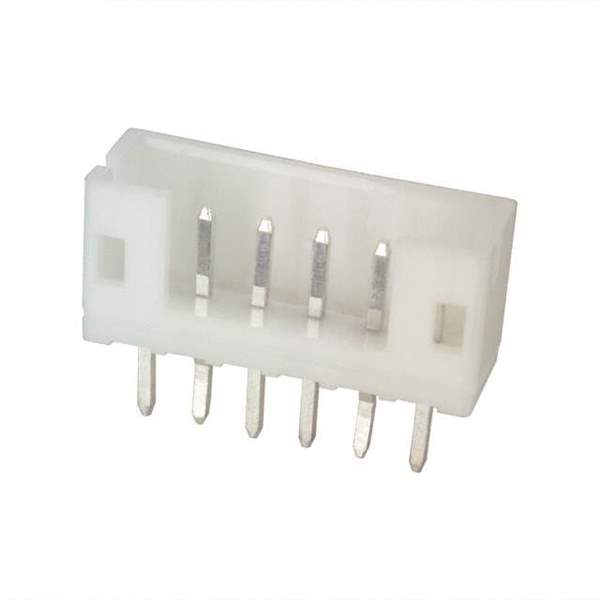

B6B-PH-K-S(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B6B-PH-K-S(LF)(SN)

Part No B6B-PH-K-S(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.333" (8.45mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8mm
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801030-B6B-PH-K-S(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B6B-PH-K-S(LF)(SN) CAD Model

Description

JST Sales America Inc. has manufactured the 801030-B6B-PH-K-S(LF)(SN) electronic component.

  • Contact Type: Male Pin
  • Positions: 6
  • Mounting: Through Hole
  • Packaging: Bulk
  • Supply and Demand Status: Sufficient
  • Manufacturer Pack Quantity: 1,000
