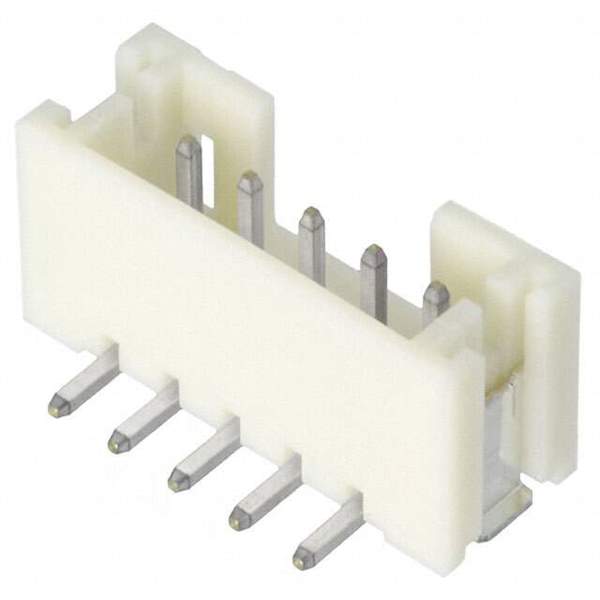

B5B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B5B-PH-SM4-TB(LF)(SN)

Part No B5B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 5POS 2MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Win Source Part Number 1021634-B5B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B5B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1021634-B5B-PH-SM4-TB(LF)(SN) is a 5-position header connector with solder retention feature.

  • Manufacturer: JST Sales America Inc.
  • Positions: 5
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Fastening Type: Detent Lock
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Mated Stacking Heights: 8.6mm
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Style: Board to Cable/Wire
  • Pitch Mating: 0.079" (2.00mm)
  • Insulation Color: Natural
  • Shroud: 4 Walls
  • Operating Temperature: -25°C to 85°C
