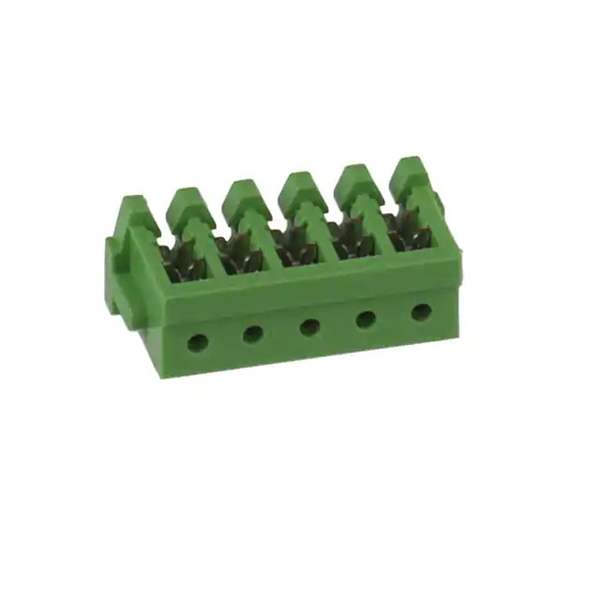

05ZR-8M-P JST Sales America Inc.
Same model may have multiple batches, images only for reference.

05ZR-8M-P

Part No 05ZR-8M-P
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT 5POS IDC 28AWG TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr JST Sales America Inc.
Series ZR
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 5
Pitch 0.059" (1.50mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Fastening Type -
Cable Termination IDC
Wire Type Discrete
Wire Gauge 28 AWG
Features Closed End
Contact Finish Tin
Contact Finish Thickness -
Color Green
Base Product Number 05ZR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1366140-05ZR-8M-P
Ultra Librarian 3D Model Ultra Librarian 05ZR-8M-P CAD Model

Description

The 1366140-05ZR-8M-P is a free hanging, panel mount rectangular connector manufactured by JST Sales America Inc.

  • Connector Type: Receptacle
  • Number of Positions: 5
  • Contact Type: Female Socket
  • Pitch: 0.059" (1.50mm)
  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: -25°C ~ 85°C
  • Color: Green
  • Features: Closed End
  • Series: ZR
  • Packaging: Bulk
  • Wire Gauge: 28 AWG
  • Termination: IDC Cable
