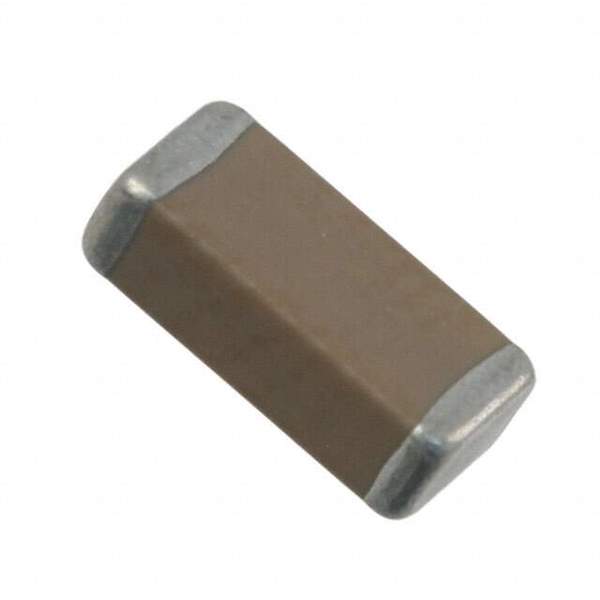

202R29W222KV4E Real Image
Same model may have multiple batches, images only for reference.

202R29W222KV4E

Part No 202R29W222KV4E
Manufacturer Johanson Dielectrics Inc.
Catalog Ceramic Capacitors
Description CAP CER 2200PF 2KV X7R 1808 / 2200 pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1808 (4520 Metric)
Datasheet
202R29W222KV4E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Johanson Dielectrics Inc.
Package Tape & Reel
Capacitance 2200 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1808 (4520 Metric)
Dimension 0.189" L x 0.080" W (4.80mm x 2.03mm)
Thickness (Max) 0.085" (2.16mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 709-1306-2,709-1306-1,709-1306-6
Standard Package 2,000
Win Source Part Number 1109434-202R29W222KV4E
Ultra Librarian 3D Model Ultra Librarian 202R29W222KV4E CAD Model

Description

The Johanson Dielectrics Inc. 202R29W222KV4E is a ceramic capacitor with a capacitance of 2200 pF and a voltage rating of 2000V.

  • Capacitance: 2200 pF
  • Voltage Rating: 2000V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Application: General-Purpose
  • Package: 1808 (4520 Metric)
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 125°C
  • REACH: Unaffected
