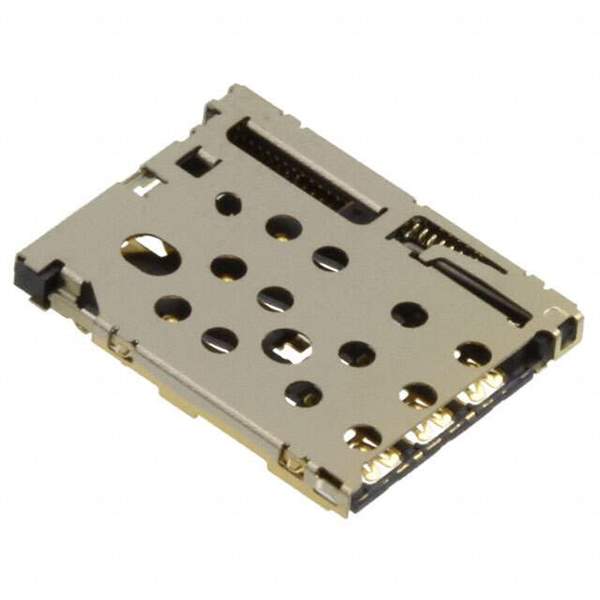

Same model may have multiple batches, images only for reference.

SF72S006VBAR2500

Name: SF72S006VBAR2500
Brand: JAE Electronics
SKU: 1092416
Availability: InStock
Rating: 4.94 (48 reviews)

Get a Quote

Part No	SF72S006VBAR2500
Manufacturer	JAE Electronics
Catalog	Memory Connectors - Accessories
Description	CONN NANO SIM CARD PUSH-PUSH / 8 (6 + 2) Position Card Connector NANO SIM Surface Mount, Right Angle Gold
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Memory Connectors - PC Card Sockets
Mfr	JAE Electronics
Series	SF72
Package	Tape & Reel
Product Status	Obsolete
Card Type	NANO SIM
Number of Positions	8 (6 + 2)
Connector Type	Connector and Ejector
Insertion, Removal Method	Push In, Push Out
Mounting Type	Surface Mount, Right Angle
Features	Switch
Height Above Board	0.049" (1.25mm)
Mounting Feature	Normal, Standard - Top
Contact Finish	Gold
Contact Finish Thickness	11.8µin (0.30µm)
Base Product Number	SF72S006
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	670-2799-1,670-2799-6,670-2799-2
Standard Package	2,500
Win Source Part Number	1092416-SF72S006VBAR2500
Ultra Librarian 3D Model	Ultra Librarian SF72S006VBAR2500 CAD Model

Description

The JAE Electronics SF72S006VBAR2500 is a connector and ejector electronic component that belongs to the SF72 series.

Series: SF72
Positions: Eight
Features: Six plus two features and a switch
Connector Type: Gold
Contact Finish Thickness: 11.8µin (0.30µm)
Package: Tape and Reel
Height Above Board: 0.049" (1.25mm)
Card Type: NANO SIM
Insertion and Removal Method: Push in and Push out
Mounting Feature: Normal and Standard-Top
Mounting Type: Surface Mount and Right Angle
Alternative Parts: 1473005-1, 500901-0801, 1473005-4, 503398-1892, 47219-2001, and 2-2013289-1
