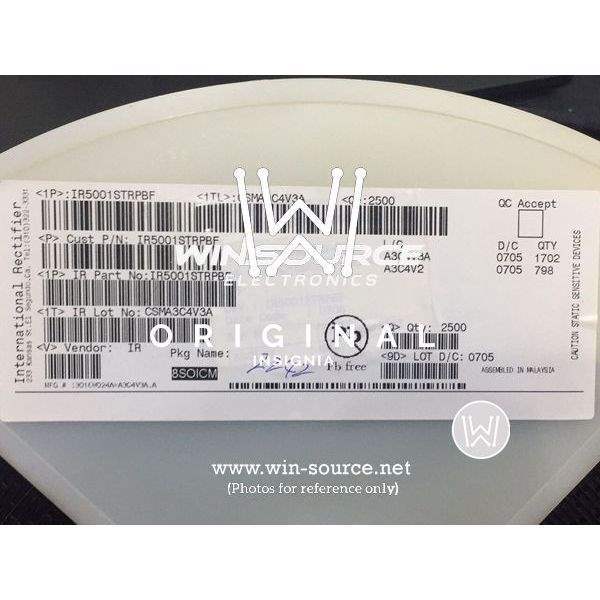

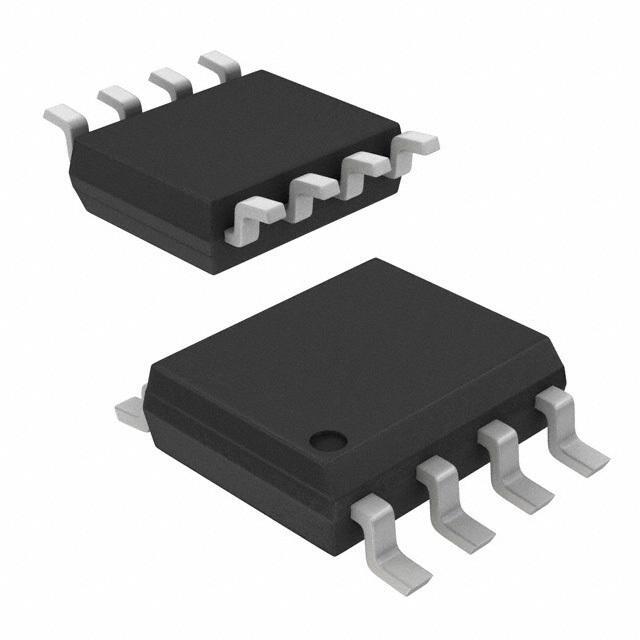

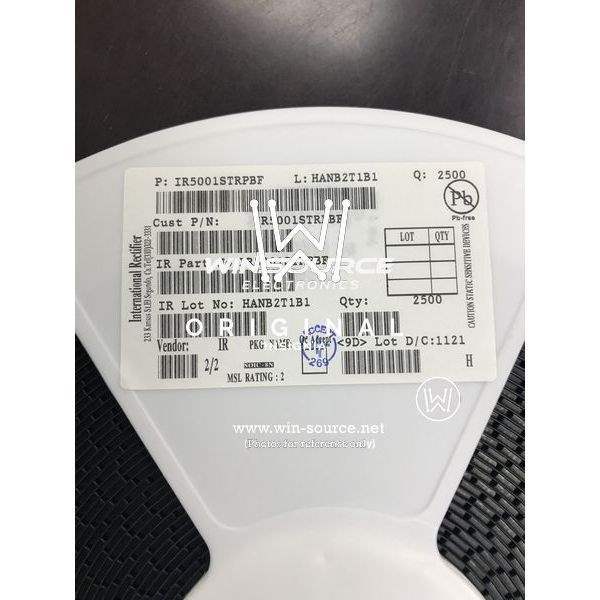

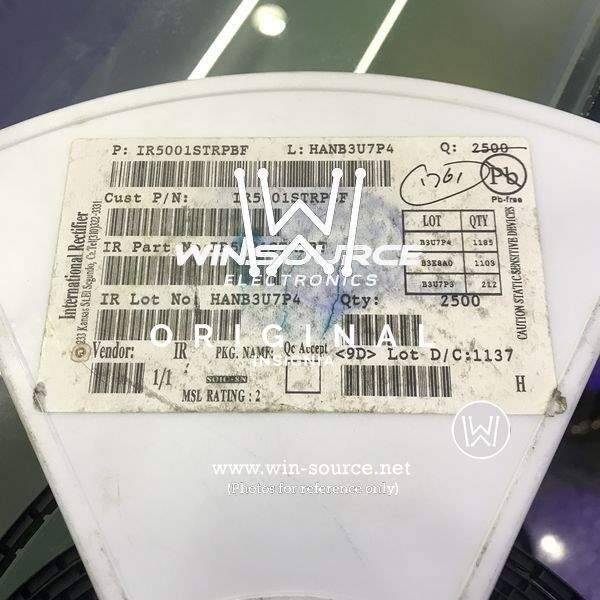

IR5001STRPBF Infineon Technologies IR5001STRPBF label picture IR5001STRPBF label picture 2 IR5001STRPBF label picture 3 IR5001STRPBF real image 2
IR5001STRPBF Infineon Technologies IR5001STRPBF label picture IR5001STRPBF label picture 2 IR5001STRPBF label picture 3 IR5001STRPBF real image 2
Same model may have multiple batches, images only for reference.

IR5001STRPBF

Part No IR5001STRPBF
Manufacturer Infineon Technologies
Catalog PMIC - OR Controllers, Ideal Diodes
Description OR Controller N-Channel Single 8-Pin SOIC T/R / IC OR CTRLR N+1 8SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Type N+1 ORing Controller
Polarity N-Channel
Delay Time - ON 27μs
Delay Time - OFF 130ns
Operating Supply Current 500μA
Supply Voltage - Operating 36 V to 75 V
Applications -48V Dist Power Systems
Temperature Range - Operating 0°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 017405-IR5001STRPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 2,500
Family Name IR5001S
Introduction Date December 16, 2005
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IR5001STRPBF CAD Model

Description

The Infineon Technologies IR5001STRPBF is an N+1 ORing controller integrated circuit (IC) that is suitable for high-popularity applications. This product is obsolete (EOL) and has a limited supply and demand status.

  • Status: obsolete (EOL)
  • Supply and demand status: limited
