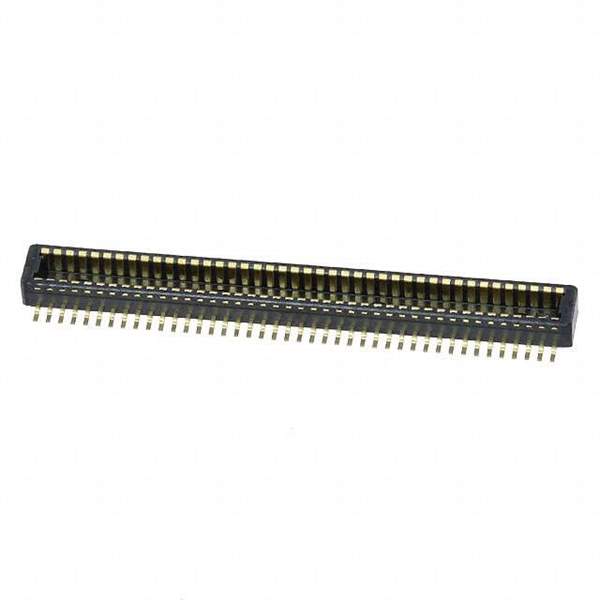

DF40C-80DP-0.4V(51) Real Image
Same model may have multiple batches, images only for reference.

DF40C-80DP-0.4V(51)

Part No DF40C-80DP-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 80POS 0.4MM SMD GOLD
Datasheet
DF40C-80DP-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 80
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm
Height Above Board 0.045" (1.14mm)
Win Source Part Number 1033028-DF40C-80DP-0.4V(51)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DF40C-80DP-0.4V(51) CAD Model

Description

Hirose Electric Co Ltd's DF40C-80DP-0.4V(51) is a connector plug with outer shroud contacts.

  • Positions: 80
  • Pitch: 0.016" (0.40mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 2µin (0.05µm)
  • Height Above Board: 0.045" (1.14mm)
  • Mounting Technology: SMD (SMT)
  • Mated Stacking Heights: 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm
  • Category: Connectors and Interconnects
  • Product Status: Active
  • Supply and Demand Status: Sufficient
  • Quantity per Package: 5k pcs
