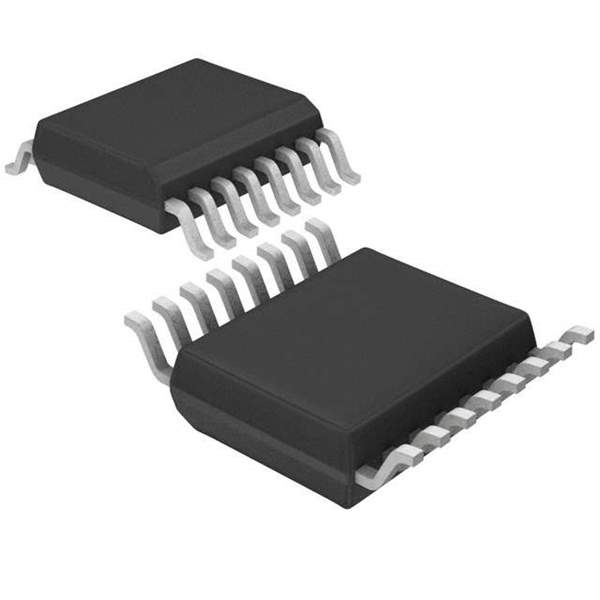

MC9S08SH4CTG Real Image
Same model may have multiple batches, images only for reference.

MC9S08SH4CTG

Part No MC9S08SH4CTG
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB FLASH 16TSSOP
Datasheet
MC9S08SH4CTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube/Rail
Status Active
Core Processor S08
Part Core Size 8-Bit
Speed(Frequency) 40MHz
Number of I/O 13
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
Data RAM Size 256 x 8
Supply Voltage - Operating 2.7 V to 5.5 V
Data Converters A/D 8x10b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-TSSOP
Win Source Part Number 139265-MC9S08SH4CTG
Ultra Librarian 3D Model Ultra Librarian MC9S08SH4CTG CAD Model

Description

The NXP MC9S08SH4CTG is an 8-bit microcontroller with a S08 core processor.

  • I/O Pins: 13
  • Program Memory Size: 4KB
  • Program Memory Type: FLASH
  • Data Converter: A/D 8x10b
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Supply Voltage Range: 2.7 V to 5.5 V
  • Data RAM Size: 256 x 8
  • Product Status: active
  • Case/Package: 16-TSSOP
  • Speed: 40MHz
