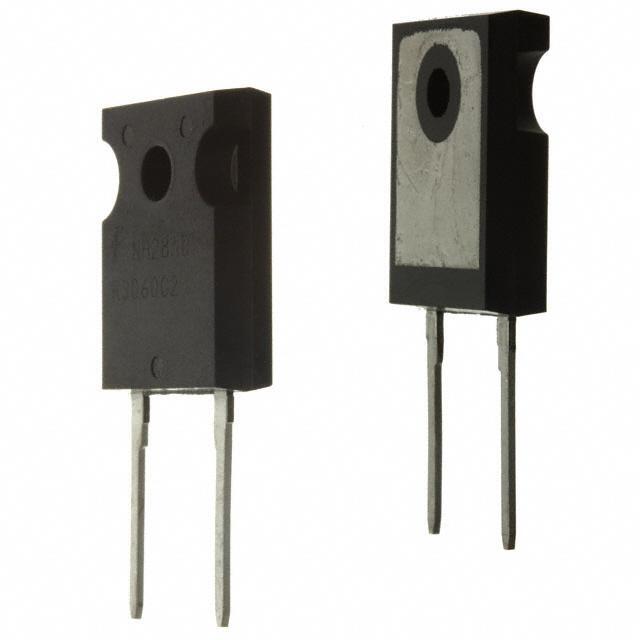

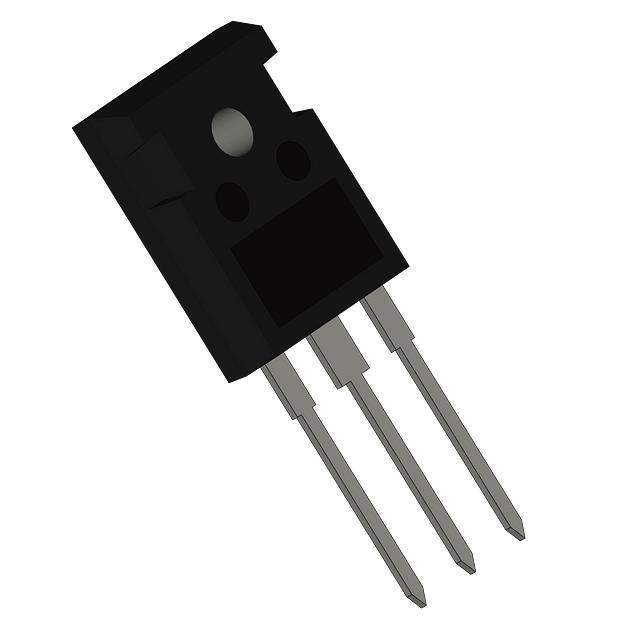

RHRG75120 Fairchild/ON Semiconductor RHRG75120 Real Image RHRG75120 real image5154 RHRG75120 real image5155
RHRG75120 Fairchild/ON Semiconductor RHRG75120 Real Image RHRG75120 real image5154 RHRG75120 real image5155
Same model may have multiple batches, images only for reference.

RHRG75120

Part No RHRG75120
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 75A TO247 / Rectifier Diode Switching 1.2KV 75A 100ns 2-Pin(2+Tab) TO-247 Tube
Datasheet
RHRG75120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200V (1.2kV)
Current - Average Rectified (Io) 75A
Voltage - Forward (Vf) (Max) @ If 3.2V @ 75A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 100ns
Current - Reverse Leakage @ Vr 250μA @ 1200V
Mounting Through Hole
Case / Package TO-247-2
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 088893-RHRG75120
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 450
Family Name RHRG75120
Introduction Date January 01, 2002
ECCN EAR99
Country of Origin China, Malaysia, Philippines, Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian RHRG75120 CAD Model

Description

The RHRG75120 is a standard diode with a voltage rating of 1200V (1.2kV) and an average rectified current of 75A.

  • Voltage Rating: 1200V (1.2kV)
  • Average Rectified Current: 75A
  • Speed: Fast Recovery = 200mA (Io)
  • Forward Voltage: 3.2V @ 75A
  • Reverse Recovery Time: 100ns
  • Reverse Leakage Current: 250μA @ 1200V
  • Halogen-Free: Yes
  • Case/Package: TO-247-2
  • Manufacturer: Fairchild/ON Semiconductor
  • Popularity: High
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2026
