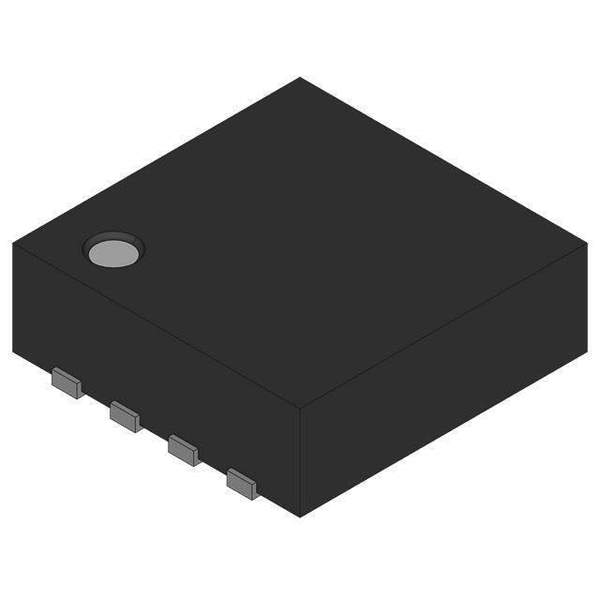

NC7WZ125L8X Real Image
Same model may have multiple batches, images only for reference.

NC7WZ125L8X

Part No NC7WZ125L8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC BUFF TRI-ST DL UHS 8MICROPAK / Buffer/Line Driver 2-CH Non-Inverting 3-ST CMOS 8-Pin MicroPak T/R
Datasheet
NC7WZ125L8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Buffer, Non-Inverting
Number of Elements 2
Number of Bits per Element 1
Output Type Push-Pull
Current - Output High, Low 32mA, 32mA
Supply Voltage - Operating 1.65 V to 5.5 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 8-MicroPak
Win Source Part Number 024870-NC7WZ125L8X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Signal Processing, Industrial
Quantity per package 5k pcs
Family Name NC7WZ125
Introduction Date March 14, 2001
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NC7WZ125L8X CAD Model

Description

The Fairchild/ON Semiconductor 024870-NC7WZ125L8X is a buffer, non-inverting logic type electronic component designed for mounting on surface mount technology (SMT).

  • Output Type: Push-pull
  • Elements: 2
  • Bit Per Element: 1
  • Family: NC7WZ125
  • Package: 8-MicroPak
  • Supply Voltage: 1.65 V to 5.5 V
  • Popularity: High
  • Supply and Demand Status: Sufficient
  • Applications: Signal processing and industrial
  • Alternative Parts: NC7WZ125K8X, NC7WZ125K8X_Q, NC7WZ125K8, and NC7WZ125K8X_NL
  • Introduction Date: March 14, 2001
  • Estimated EOL Date: 2028
  • Halogen-Free: Compliant
  • ECCN: EAR99
  • Quantity: 5k pcs
