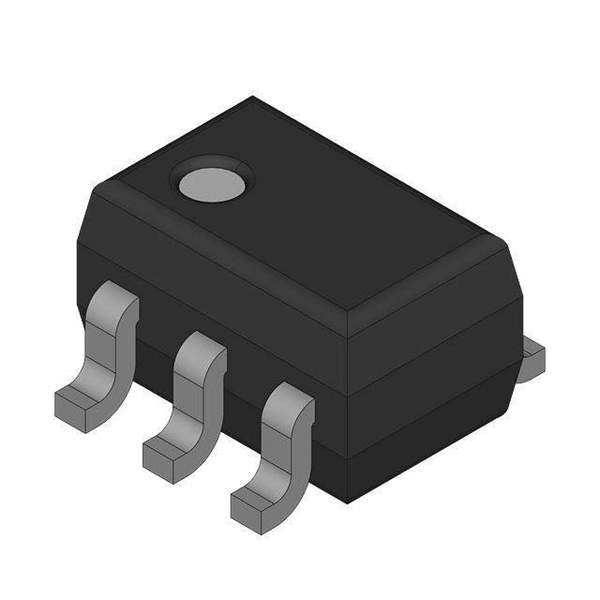

NC7S14P5 Real Image
Same model may have multiple batches, images only for reference.

NC7S14P5

Part No NC7S14P5
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC INVERTER HS SCHMITT SC70-5
Datasheet
NC7S14P5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Features Schmitt Trigger
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.3 V to 1.5 V
Logic Level - High 1.5 V to 4.2 V
Max Propagation Delay @ V, Max CL 17ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SC-70-5
Dimension 5-TSSOP, SC-70-5, SOT-353
Win Source Part Number 059850-NC7S14P5
Popularity Medium
Supply and Demand Status Limited
Quantity per package 250
Ultra Librarian 3D Model Ultra Librarian NC7S14P5 CAD Model

Description

The Fairchild/ON Semiconductor 059850-NC7S14P5 is an inverter with a Schmitt trigger and one input.

  • Maximum Propagation Delay: 17ns @ 6V and 50pF
  • Current Output High: 2.6mA
  • Current Output Low: 2.6mA
  • Quiescent Current: 1μA
  • Logic Level Low: 0.3V to 1.5V
  • Logic Level High: 1.5V to 4.2V
  • Package: SC-70-5
  • Operating Temperature: -40°C to 85°C
