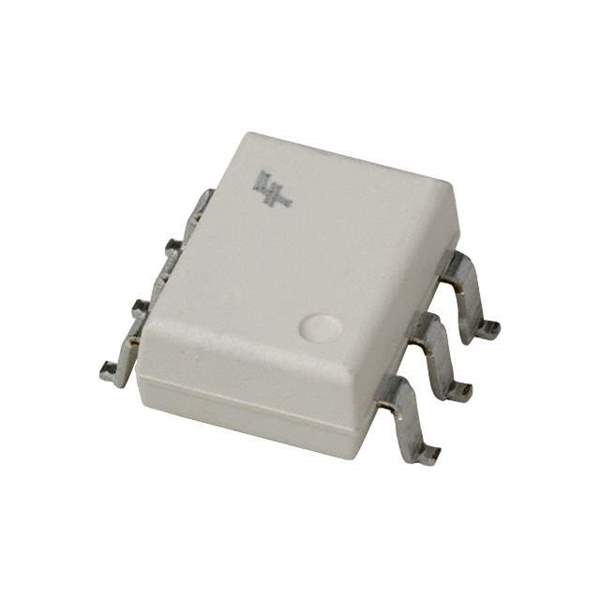

MOC3052SM Real Image
Same model may have multiple batches, images only for reference.

MOC3052SM

Part No MOC3052SM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4.17KV TRIAC 6SMD
Datasheet
MOC3052SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 4170Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - Hold (Ih) 220μA (Typ)
Forward Voltage 1.18V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals UR
Win Source Part Number 139870-MOC3052SM
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian MOC3052SM CAD Model

Description

The Fairchild/ON Semiconductor MOC3052SM is a one-channel optocoupler with a triac output.

  • Function: It is designed for use in applications requiring high isolation voltage and low input current.
  • Voltage Off State: The MOC3052SM has a voltage-off state of 600V and a continuous forward current of 60mA.
  • Package: It is housed in a 6-SMD package and has a popularity of high in the market.
  • Quantity: The package contains 1k pcs.
