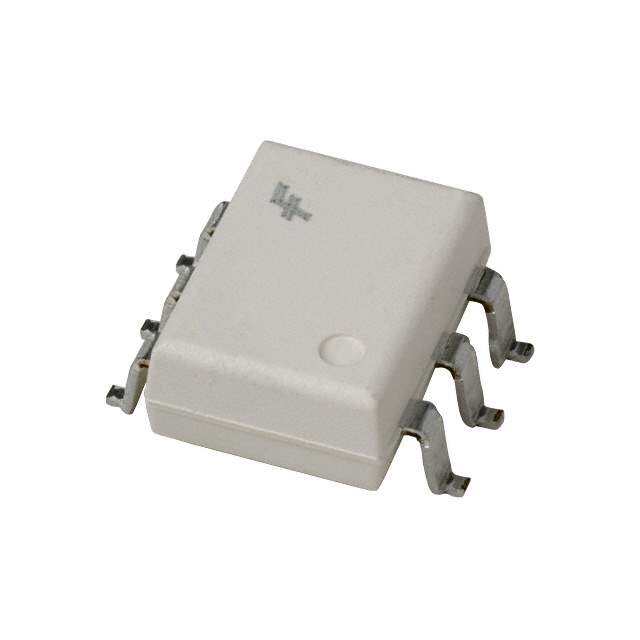

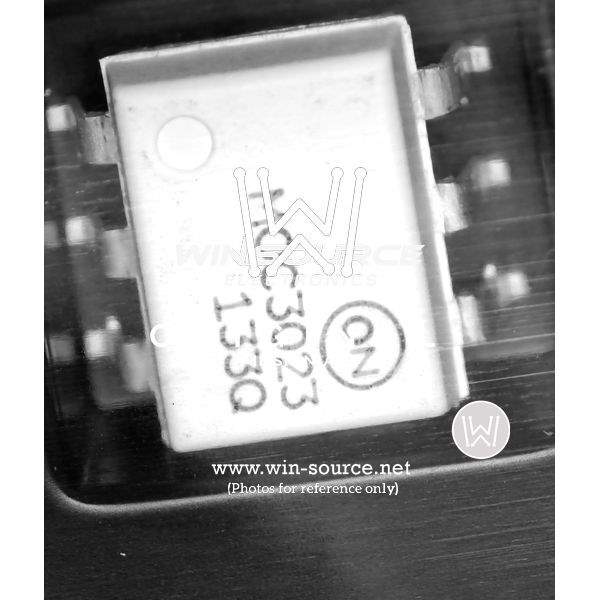

MOC3023SR2VM Real Image MOC3023SR2VM real image3536
MOC3023SR2VM Real Image MOC3023SR2VM real image3536
Same model may have multiple batches, images only for reference.

MOC3023SR2VM

Part No MOC3023SR2VM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4.17KV TRIAC 6SMD
Datasheet
MOC3023SR2VM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 4170Vrms
Voltage - Off State 400V
Current - LED Trigger (Ift) (Max) 5mA
Current - Hold (Ih) 100μA (Typ)
Forward Voltage 1.15V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals IEC/EN/DIN, UL
Win Source Part Number 024179-MOC3023SR2VM
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian MOC3023SR2VM CAD Model

Description

The Fairchild/ON Semiconductor 024179-MOC3023SR2VM is a triac output type optocoupler with a forward voltage of 1.15V and an off state voltage of 400V.

  • Output Type: Triac
  • Forward Voltage: 1.15V
  • Off State Voltage: 400V
  • Isolation Voltage: 4170Vrms
  • Current Hold: 100μA (Typ)
  • Channel Count: Single
  • Mounting Technology: Surface Mount
  • Approvals: IEC/EN/DIN and UL
  • LED Trigger Current: 5mA (Max)
  • Zero Crossing Circuit: No
  • Turn On Time: Not Specified
  • Category: Isolators
  • Status: Active
  • Operating Temperature: -40°C to 85°C
  • Packaging: Reel
  • Quantity per Package: 1k pcs
