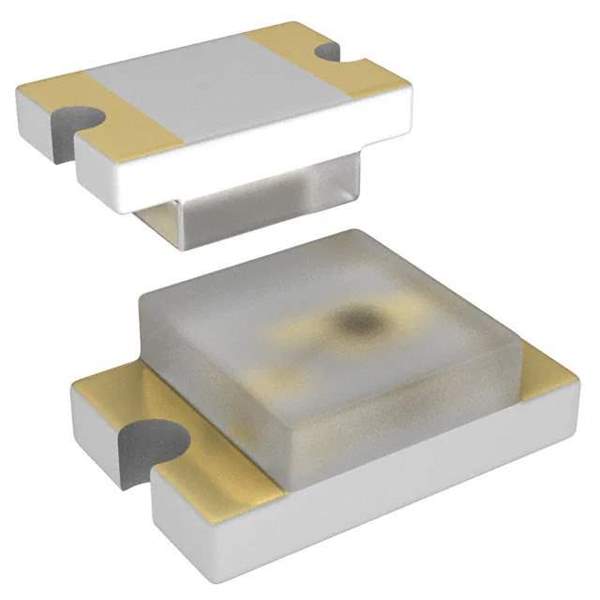

QTLP630C7TR Real Image
Same model may have multiple batches, images only for reference.

QTLP630C7TR

Part No QTLP630C7TR
Manufacturer Everlight Electronics Co Ltd
Catalog LED Indication - Discrete
Description LED RED CLEAR 0805 SMD / Red 645nm LED Indication - Discrete 1.9V 0805 (2012 Metric)
Datasheet
QTLP630C7TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Everlight Electronics Co Ltd
Package Tape & Reel
Product Status Active
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 20mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 20mA
Viewing Angle 140°
Mounting Type Surface Mount
Wavelength - Dominant 645nm
Wavelength - Peak 660nm
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 2.00mm L x 1.25mm W
Height (Max) 1.20mm
Base Product Number QTLP630
Standard Package 2,000 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 890654-QTLP630C7TR
Ultra Librarian 3D Model Ultra Librarian QTLP630C7TR CAD Model

Description

The QTLP630C7TR is a red LED indication component from Everlight Electronics Co Ltd.

  • Category: optoelectronics
  • Type: discrete LED
  • Shape: rectangular
  • Lens Style: flat top
  • Length: 2.00mm
  • Width: 1.25mm
  • Mount: surface mount
  • Package: 0805 (2012 Metric)
  • Viewing Angle: 140 degrees
  • Millicandela Rating: 20mcd
  • Forward Voltage: 1.9V
  • Current: 20mA
  • Dominant Wavelength: 645nm
  • Peak Wavelength: 660nm
  • Height: 1.20mm
  • Package: tape and reel
  • Standard Package Size: 2,000 pcs
  • Status: active
