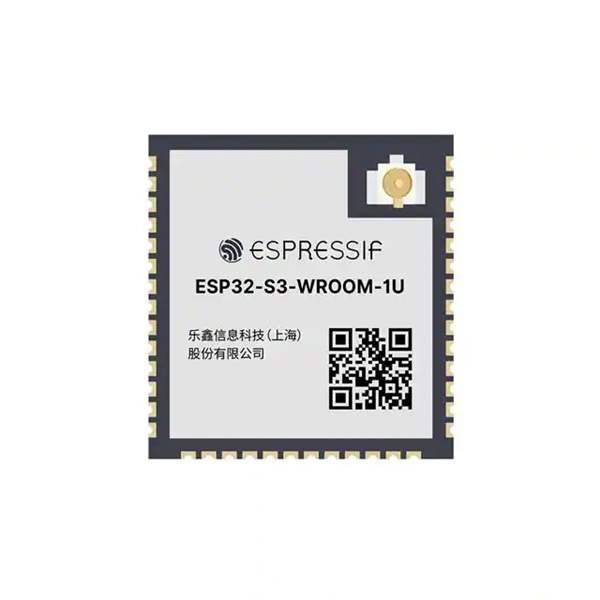

ESP32-S3-WROOM-1U-N16R8 Espressif
Same model may have multiple batches, images only for reference.

ESP32-S3-WROOM-1U-N16R8

Part No ESP32-S3-WROOM-1U-N16R8
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SMD MODULE, ESP32-S3R8 WITH 8 MB / Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Datasheet
ESP32-S3-WROOM-1U-N16R8 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32-S3
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v5.0
Modulation -
Frequency 2.4GHz
Data Rate 150Mbps
Power - Output 20.5dBm
Sensitivity -103.5dBm
Serial Interfaces ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
Antenna Type Antenna Not Included, U.FL
Utilized IC / Part ESP32-S3R8
Memory Size 16MB Flash, 384kB ROM, 8MB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 95mA ~ 97mA
Current - Transmitting 285mA ~ 355mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 65°C (TA)
Package / Case 41-SMD Module
Base Product Number ESP32-S3
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1354345-ESP32-S3-WROOM-1U-N16R8
Ultra Librarian 3D Model Ultra Librarian ESP32-S3-WROOM-1U-N16R8 CAD Model

Description

The ESP32-S3-WROOM-1U-N16R8 is an RF transceiver module from Espressif Systems. It is a part of the ESP32-S3 series and operates in the 2.4GHz frequency range.

  • Package / Case: 41-SMD
  • Protocols: Bluetooth, WiFi
  • Data Rate: 150Mbps
  • Power Output: 20.5dBm
  • Sensitivity: -103.5dBm
  • Serial Interfaces: ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
