Overview

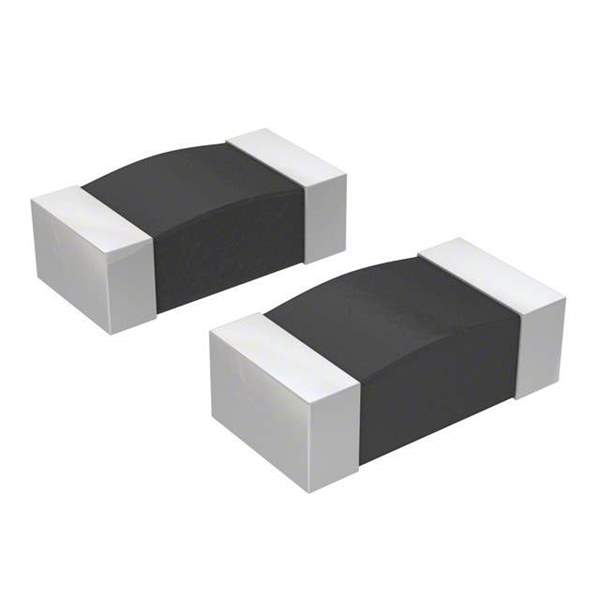

The 0603ESDA2-TR2 from Eaton Bussmann is an SMD transient voltage suppressor (TVS) device designed for electrostatic discharge (ESD) and surge protection in sensitive high-speed circuits. It belongs to the “TVS – Mixed Technology” category and is supplied in a compact 0603 (1608 metric) chip package suitable for automated pick-and-place and reflow soldering. Typical use is to clamp fast voltage transients on data, control, or power lines, helping interfaces such as USB, GPIO, or communication buses meet IEC ESD immunity requirements and improve overall system robustness, without adding significant capacitance or leakage to the protected signal lines.

Applications

• Protection of high-speed data interfaces such as USB, HDMI, DisplayPort, or LVDS lines in consumer electronics
• ESD and surge protection on GPIO, reset, and control lines in microcontroller-based embedded systems
• Input protection for communication ports in industrial controllers, PLCs, and HMIs
• Surge and ESD protection on sensor interfaces in automotive and transportation electronics (infotainment, body control, telematics)
• Protection of PCB test points and external connectors in measurement, medical, and lab instrumentation
• Transient suppression on low-voltage power rails and auxiliary lines in networking and telecom equipment

Alternatives & Replacement

Depending on supply availability, lifecycle status, target protection level, and allowable capacitance or leakage, alternative TVS or ESD protection components may be required. When selecting a substitute, match not only the working and clamping voltages but also the package size, power rating, and capacitance to avoid degrading signal integrity or protection performance.

Recommended alternatives:

• Eaton Bussmann 0402ESDA-MLP1 – Functional equivalent in a smaller 0402 package; suitable where tighter PCB density is needed (board-level re-layout may be required).
• Eaton Bussmann 0402ESDA-MLP7 – Functional equivalent option in 0402 footprint, useful when optimizing for inventory or cost.
• Eaton Bussmann 0402ESDB-MLP1 – Similar protection function but with differing key parameters; generally requires circuit review and potential redesign.
• Littelfuse ZEN132V230A16LS – Alternative surge/ESD protection device from another vendor; electrical and package compatibility must be carefully evaluated.
• Texas Instruments SN65220 series (SN65220DBVR / SN65220DBVT / SN65220DBVRG4) – Integrated protection interface devices; use only in designs where a more complex protection solution and PCB redesign are acceptable.
• ON Semiconductor NCP361SNT1G and Maxim Integrated MAX6499ATA+T – Power-line protection/supervisor style devices that may address specific rail-protection needs but typically are not drop-in TVS replacements.

Engineering note: Always verify the candidate part’s datasheet against your existing design. Confirm pin configuration, footprint (0603 vs 0402 or other), working voltage and clamping voltage, capacitance on high-speed lines, surge/ESD ratings, and thermal/power limits. A device marked as “functional equivalent” may still require PCB footprint changes, while “redesign required” options should be treated as part of a controlled re-engineering and validation process.
