Product Overview: ZMM5234B-7 from Diodes Incorporated

The ZMM5234B-7 is a high-quality silicon planar power Zener diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This diode is well-suited for providing voltage regulation in a wide array of electronic applications, owing to its reliable performance and robust design.

Key Features

• Standard Zener Breakdown Voltage Range: The ZMM5234B-7 has a nominal Zener voltage of 5.6V, making it ideal for a variety of voltage regulation tasks in electronic circuits.
• High Stability: It offers excellent stability and is designed to maintain a consistent performance over its entire lifespan.
• Power Dissipation: With a power dissipation capability of 500mW, it can handle a moderate amount of power, ensuring reliable operation in different applications.
• Tolerance: The Zener voltage tolerance is ±5%, which provides precise voltage regulation for sensitive components.

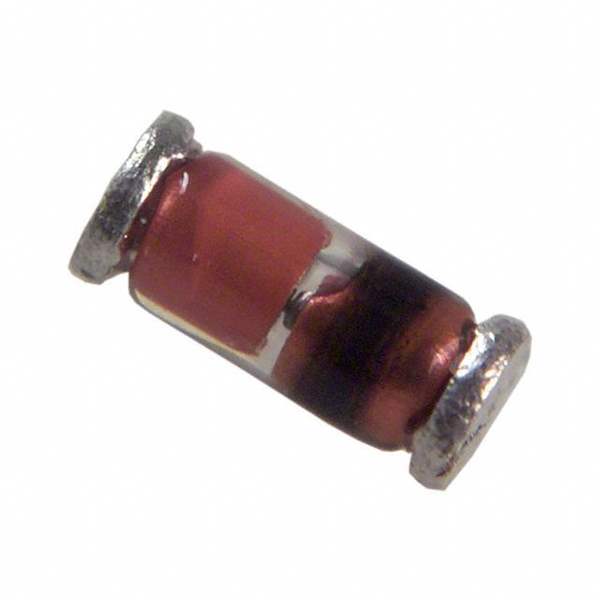

• Package: The ZMM5234B-7 comes in a standard SOD-80 MiniMELF case, which is widely used for surface-mounted devices and is known for its reliability and ease of integration into various circuit designs.
• Temperature Range: It operates within a wide temperature range from -65°C to +150°C, accommodating various operating conditions and environments.

Applications

The versatility of the ZMM5234B-7 allows it to be used in numerous applications, including:

• Voltage regulation modules
• Overvoltage and surge protection circuits
• Switching power supplies
• Consumer electronics
• Industrial electronics

Quality and Reliability

Diodes Incorporated is committed to delivering products that meet the highest standards of quality and reliability. The ZMM5234B-7 is no exception, as it undergoes rigorous testing to ensure it meets the stringent requirements of the electronics industry. Customers can trust this Zener diode to provide consistent performance and durability in their electronic designs.

For detailed specifications and application notes, it is recommended to consult the official datasheet provided by Diodes Incorporated for the ZMM5234B-7 Zener diode.
