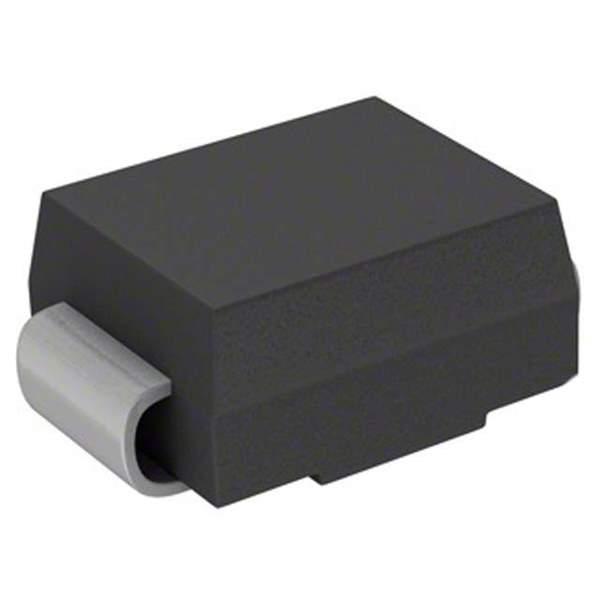

Product Overview: SMAJ16CA-13-F by Diodes Incorporated

The SMAJ16CA-13-F is a high-quality transient voltage suppressor (TVS) diode designed and produced by Diodes Incorporated. This robust component is engineered to protect sensitive electronic equipment from voltage spikes and surges, ensuring reliable operation and longevity of the device it is safeguarding.

Key Features

• Bi-directional Protection: The SMAJ16CA-13-F can provide bi-directional clamping, making it versatile for protecting against voltage transients on lines where the polarity reverses or is undefined.
• High Surge Capability: With its ability to handle surges up to 400W (10/1000μs), this TVS diode is an excellent choice for guarding against high-energy transients.
• Low Incremental Surge Resistance: The device offers minimal resistance during a surge, ensuring that the excess energy is quickly and efficiently clamped.
• Fast Response Time: The SMAJ16CA-13-F reacts to overvoltages within picoseconds, providing immediate protection for the connected circuitry.
• Industry-Standard Package: Enclosed in the SMA package, it is compatible with automated assembly processes, making it easy to integrate into a wide range of products.

Electrical Characteristics

The SMAJ16CA-13-F has a stand-off voltage of 16V, which means it remains non-conductive under normal operating conditions up to this voltage. In the event of a voltage spike, it clamps the voltage to a maximum of 26V (Vc), protecting connected components. The breakdown voltage is between 17.8V and 19.7V, with a maximum clamping voltage of 26V. The maximum leakage current is a mere 1μA at 16V, which indicates very low power loss during normal operation.

Applications

With its reliable performance in transient voltage suppression, the SMAJ16CA-13-F is well-suited for a variety of applications, including:

• Consumer electronics such as smartphones, tablets, and laptops
• Industrial control systems
• Power supply units
• Automotive electronics
• Telecommunication systems

The SMAJ16CA-13-F from Diodes Incorporated is an essential component for designers who require robust protection against voltage transients in their electronic products. Its combination of high surge capability, fast response time, and low leakage current make it an excellent choice for ensuring the safety and reliability of a wide array of electronic systems.
