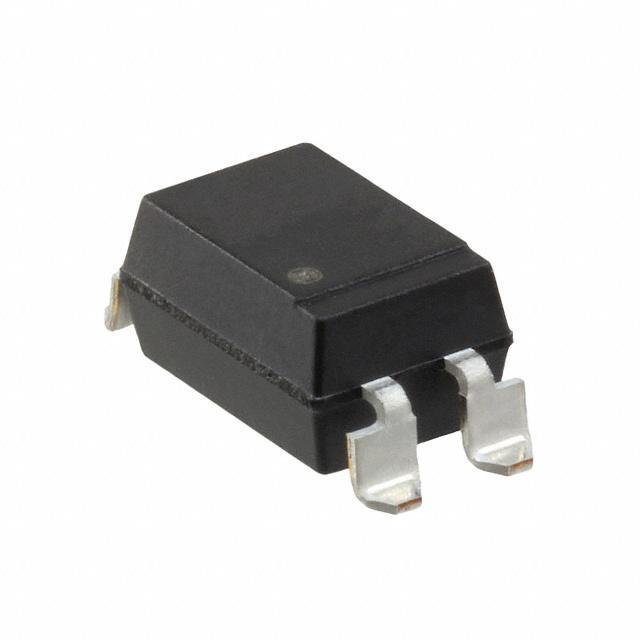

PS2501L-1-F3-A CEL PS2501L-1-F3-A Real Image

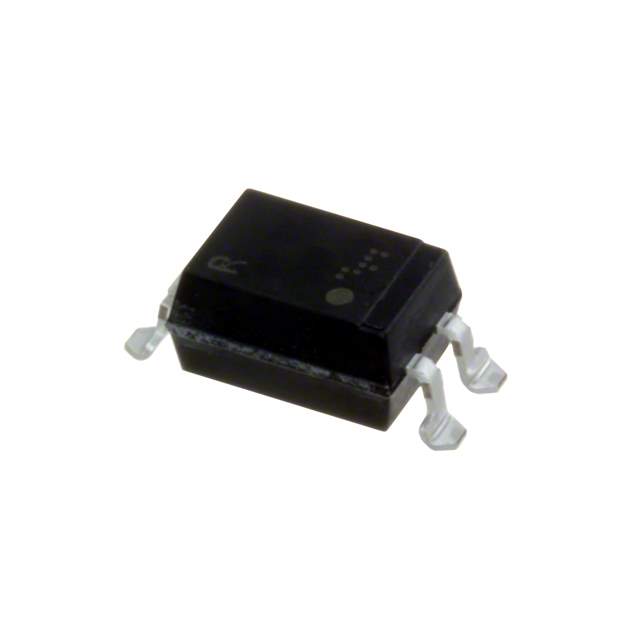

PS2501L-1-F3-A CEL PS2501L-1-F3-A Real Image
Same model may have multiple batches, images only for reference.

PS2501L-1-F3-A

Part No PS2501L-1-F3-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4SMD / DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R
Datasheet
PS2501L-1-F3-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 3μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.17V
Continuous forward current- Max 80mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 026865-PS2501L-1-F3-A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name PS2501L-1
Introduction Date November 01, 2001
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian PS2501L-1-F3-A CAD Model

Description

The PS2501L-1-F3-A is a transistor output optocoupler in 4-SMD package from CEL.

  • Maximum Forward Voltage: 1.17V
  • Vce Saturation (max): 300mV
  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 80% @ 5mA
  • Channel Output: Single channel
  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Continuous Forward Current-Max: 80mA
  • Switching Turn-On Time: -
  • Switching Turn-Off Time: -
  • Rise Time: 3μs
  • Fall Time: 5μs
  • Operating Temperature Range: -55°C to 100°C
