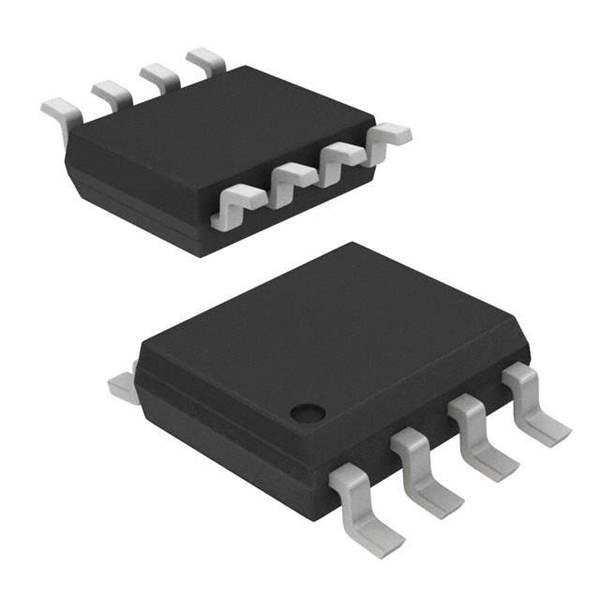

HCPL-0531-500E Real Image
Same model may have multiple batches, images only for reference.

HCPL-0531-500E

Part No HCPL-0531-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV 2CH TRANS 8SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 2
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 19% @ 16mA
Maximum DC Current Transfer Ratio 50% @ 16mA
Switching Turn-On and Turn-Off Time 200ns, 600ns
Input Type DC
Output Type Transistor
Maximum Output Voltage 20V
Channel Output Current 8mA
Forward Voltage 1.5V
Continuous forward current- Max 25mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 8-SO
Win Source Part Number 016830-HCPL-0531-500E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Signal Processing, Sensing & Instrumentation
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian HCPL-0531-500E CAD Model

Description

The Broadcom Limited HCPL-0531-500E is an isolator that comes in SMD (SMT) mounting.

  • Channels: 2
  • Input Type: DC
  • Minimum DC Current Transfer Ratio: 19% @ 16mA
  • Maximum DC Current Transfer Ratio: 50% @ 16mA
  • Switching Turn-On Time: 200ns
  • Switching Turn-Off Time: 600ns
  • Isolation Voltage: 3750Vrms
  • Maximum Output Voltage: 20V
  • Channel Output Current: 8mA
  • Continuous Forward Current: 25mA
  • Forward Voltage: 1.5V
  • Operating Temperature: -55°C to 100°C
  • Package: 8-SO
  • Applications: Signal processing, sensing, and instrumentation
  • Package Quantity: 1,500
