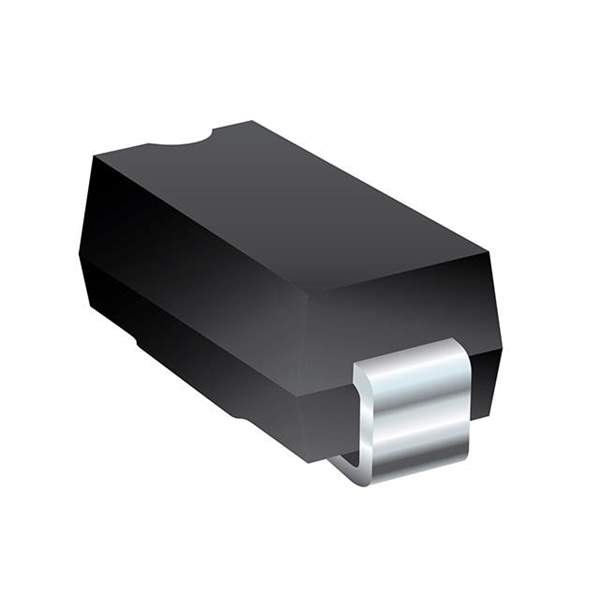

SMCJ10A Real Image
Same model may have multiple batches, images only for reference.

SMCJ10A

Part No SMCJ10A
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 10VWM 17VC DO214AB
Datasheet
SMCJ10A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection
Family TVS - Diodes
Manufacturer Bourns Inc.
Series SMCJ
Packaging Reel(TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 10V
Voltage - Breakdown (Min) 11.1V
Voltage - Clamping (Max) @ Ipp 17V
Current - Peak Pulse (10/1000μs) 88.3A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style SMD/SMT
Package DO-214AB, SMC
Manufacturer Device Package SMC (DO-214AB)
Win Source Part Number 029271-SMCJ10A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMCJ10A CAD Model

Description

The Bourns Inc. SMCJ10A TVS Diode is a high-quality electronic component designed for use in circuit protection.

  • Package: DO-214AB SMC
  • Mounting: Surface Mount Technology
  • Series: SMCJ
  • Application: General-purpose
  • Voltage Reverse Standoff: 10V
  • Voltage Breakdown: 11.1V
  • Maximum Clamping Voltage @ Ipp: 17V
  • Peak Pulse Current: 88.3A (10/1000μs)
  • Power Peak Pulse: 1500W (1.5kW)
  • Capacitance @ Frequency: Not Applicable
  • Popularity: Highly popular
  • Supply and Demand Status: Balance
