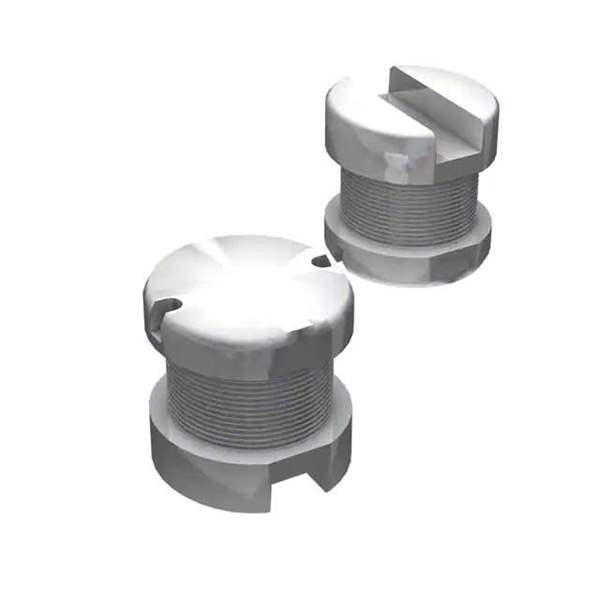

SDR0604-681KL Real Image
Same model may have multiple batches, images only for reference.

SDR0604-681KL

Part No SDR0604-681KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 680UH 160MA 4.65OHM SM
Datasheet
SDR0604-681KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series SDR0604
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±10%
Current Rating (Amps) 160 mA
Current - Saturation (Isat) 250mA
Shielding Unshielded
DC Resistance (DCR) 4.65Ohm Max
Q @ Freq 26 @ 252kHz
Frequency - Self Resonant 2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDR0604
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 664785-SDR0604-681KL
Ultra Librarian 3D Model Ultra Librarian SDR0604-681KL CAD Model

Description

The SDR0604-681KL is a fixed inductor from Bourns Inc.

  • Series: SDR0604
  • Core: drum core
  • Construction: wirewound
  • Shielding: unshielded
  • Size: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Inductance: 680µH
  • Tolerance: ±10%
  • Maximum Seated Height: 0.189" (4.80mm)
  • Mounting: surface mount
  • Packaging: tape and reel
  • Standard Package Quantity: 400 pcs
  • DC Resistance: 4.65Ohm max
  • Operating Temperature Range: -40°C to 125°C
  • Compliance: REACH
  • California Prop 65: not affected
