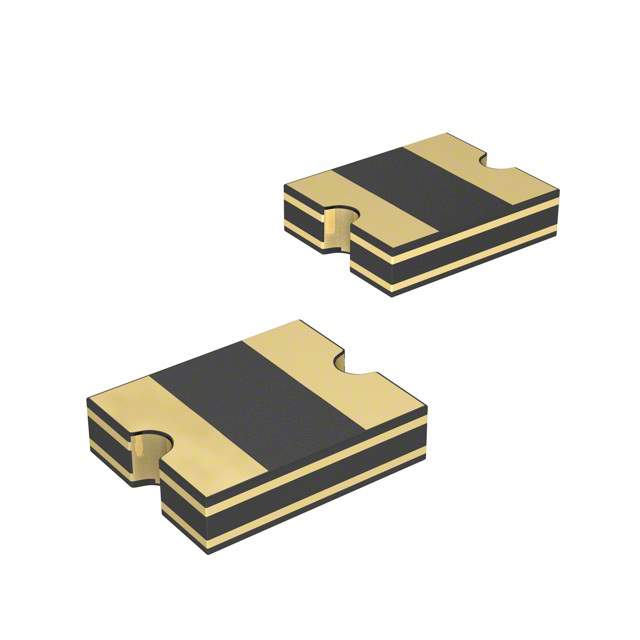

MF-USMF005-2

Part No MF-USMF005-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30V 10A 0.6W 1.5s 2.8Ohm SMD Solder Pad 1210 T/R Automotive / FUSE RESETTABLE .05A 30V HLD SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 10A
Current - Hold (Ih) (Max) 50mA
Current - Trip (It) 150mA
Time to Trip 1.5s
Resistance - Initial (Ri) (Min) 2.8 Ohm
Resistance - Post Trip (R1) (Max) 50 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 003461-MF-USMF005-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name MF-USMF
Introduction Date May 11, 2005
ECCN EAR99
Country of Origin China, Japan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MF-USMF005-2 CAD Model

Description

MF-USMF005-2 from Bourns Inc. is a PTC resettable fuse designed for circuits that need reusable overcurrent protection without the maintenance burden of replacing a one-time fuse after a fault event. Components in this category are commonly selected for portable electronics, battery-powered devices, interface ports, consumer products, and industrial control boards where designers want automatic recovery after overload conditions are removed. For engineers, the value of a resettable fuse lies in helping protect sensitive downstream circuitry while supporting compact, cost-aware designs. MF-USMF005-2 is typically considered in applications where board space, field reliability, and serviceability matter. The current lifecycle status for this part is information not available, so design teams should confirm ongoing production support directly with Bourns Inc. or authorized sources before locking it into new programs. RoHS compliance information is also not available in the provided data and should be verified against the latest manufacturer datasheet, declaration, or distributor compliance records.
