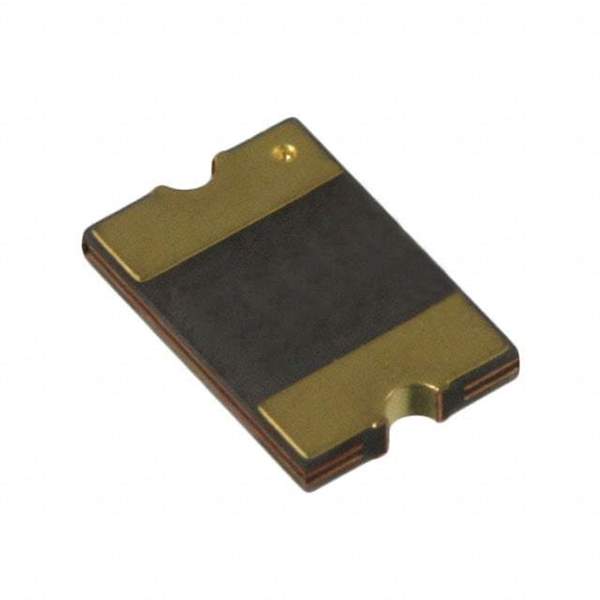

MF-MSMF075/24-2 Real Image
Same model may have multiple batches, images only for reference.

MF-MSMF075/24-2

Part No MF-MSMF075/24-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE .75A 24V 1812
Datasheet
MF-MSMF075/24-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 24V
Current - Max 40A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 200ms
Resistance - Initial (Ri) (Min) 110 mOhm
Resistance - Post Trip (R1) (Max) 450 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 023190-MF-MSMF075/24-2
Family Name MF-MSMF
Introduction Date May 24, 2004
ECCN EAR99
Country of Origin China
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Communications & Networking
Ultra Librarian 3D Model Ultra Librarian MF-MSMF075/24-2 CAD Model

Description

The Bourns Inc. MF-MSMF series is a polymeric circuit protection device used in communications and networking systems.

  • Maximum Voltage Rating: 24V
  • Maximum Current: 40A
  • Rated: AEC-Q200
  • Approvals: cURus and TUV
  • Mounting: SMD (SMT) mountable
  • Thickness: 0.033" (0.85mm)
  • Current Hold (Ih): 750mA
  • Current Trip (It): 1.5A
  • Time to Trip: 200ms
  • Resistance - Initial (Ri): 110 mOhm
  • Resistance - Post trip (R1): 450 mOhm
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Status: common-used part
  • Popularity: high
  • Supply and Demand Status: sufficient
  • Estimated EOL date: 2023
