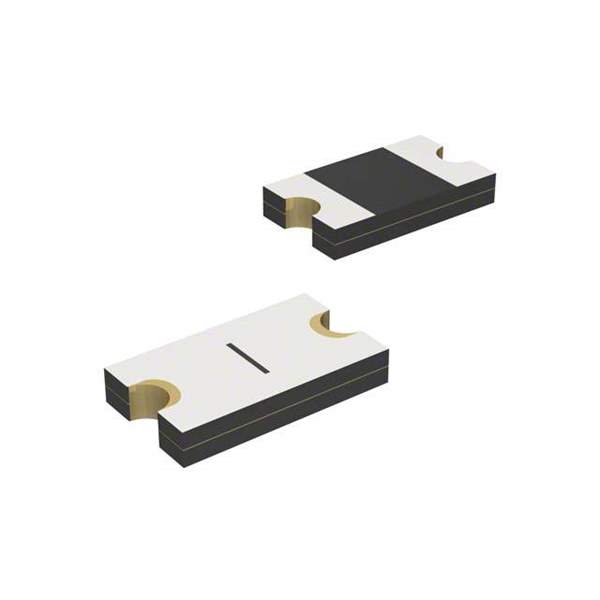

MF-FSMF020X-2 Real Image
Same model may have multiple batches, images only for reference.

MF-FSMF020X-2

Part No MF-FSMF020X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESET 200MA SMD 0603 / PTC Resettable Fuse 0.2A(hold) 0.5A(trip) 9V 40A 0.5W 0.6s 0.55Ohm SMD Solder Pad 0603 T/R Automotive
Datasheet
MF-FSMF020X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 9V
Current - Max 40A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 500mA
Time to Trip 600ms
Resistance - Initial (Ri) (Min) 550 mOhm
Resistance - Post Trip (R1) (Max) 3.5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.065" L x 0.033" W (1.65mm x 0.85mm)
Thickness (Max) 0.026" (0.65mm)
Approvals cURus, TUV
Win Source Part Number 023184-MF-FSMF020X-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Audio, Imaging, Video & Vision, Multimedia
Family Name MF-FSMF
Introduction Date March 19, 2009
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MF-FSMF020X-2 CAD Model

Description

The Bourns Inc. MF-FSMF020X-2 is a polymeric type circuit protection component that is designed to protect electronic devices from overcurrent and overvoltage conditions.

  • Maximum Voltage Rating: 9V
  • Maximum Current: 40A
  • Thickness: 0.026" (0.65mm)
  • Mounting: SMD (SMT)
  • Time to Trip: 600ms
  • Current Trip: 500mA
  • Approvals: cURus and TUV
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.065" L x 0.033" W (1.65mm x 0.85mm)
  • Initial Resistance: 550 mOhm
  • Applications: audio, imaging, video & vision, and multimedia applications
  • Popularity: High popularity part
  • Supply and Demand Status: sufficient supply and demand status
