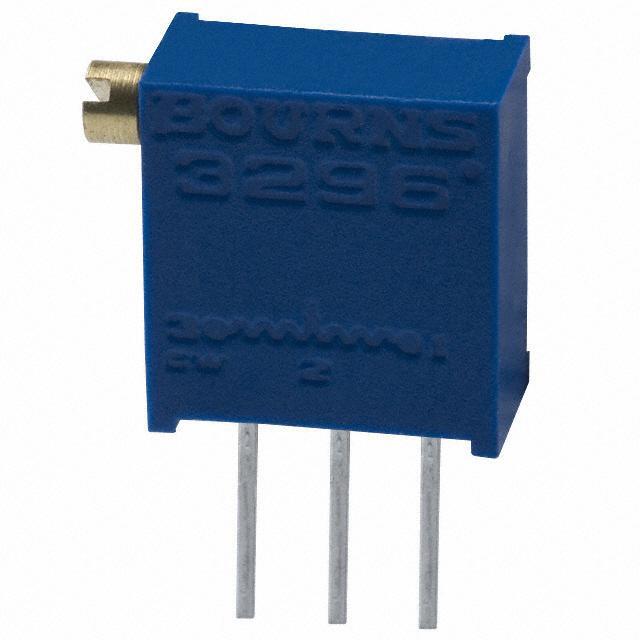

3296X-1-102LF Bourns Inc. 3296X-1-102LF Real Image 3296X-1-102LF label picture 3296X-1-102LF real image16960 3296X-1-102LF real image16961 3296X-1-102LF Real Image
3296X-1-102LF Bourns Inc. 3296X-1-102LF Real Image 3296X-1-102LF label picture 3296X-1-102LF real image16960 3296X-1-102LF real image16961 3296X-1-102LF Real Image
Same model may have multiple batches, images only for reference.

3296X-1-102LF

Part No 3296X-1-102LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 0.5W PC PIN
Datasheet
3296X-1-102LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3296 - Sealed
Packaging Tube
Resistance (Ohms) 1k
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.395" x 0.190" Face x 0.395" H (10.03mm x 4.83mm x 10.03mm)
Win Source Part Number 763230-3296X-1-102LF
Family Name 3296
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3296X-1-102LF CAD Model

Description

The Bourns Inc. 763230-3296X-1-102LF is a trimpot 3296 - sealed potentiometer.

  • Resistance: 1k ohms
  • Power: 0.5W (1/2W)
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Number of Turns: 25
  • Adjustment: Side adjustment
  • Dimension: Rectangular - 0.395" x 0.190" face x 0.395" H (10.03mm x 4.83mm x 10.03mm)
  • Termination Style: Through Hole
  • Applications: Industrial, consumer electronics, portable devices, and power management
  • Popularity: Medium
  • Supply and Demand: Limited
