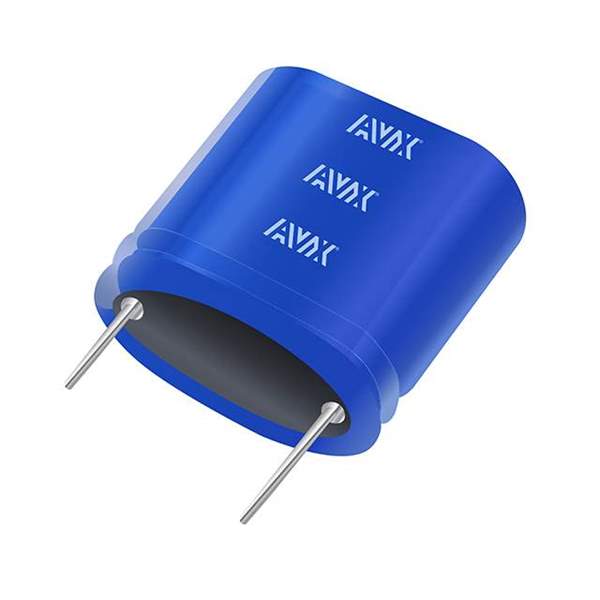

SCMR22L105SRBB0 Real Image
Same model may have multiple batches, images only for reference.

SCMR22L105SRBB0

Part No SCMR22L105SRBB0
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
SCMR22L105SRBB0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series SCM
Package Bulk
Capacitance 1 F
Tolerance -10%, +30%
Voltage - Rated 9 V
ESR (Equivalent Series Resistance) 350mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 65°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.531" (13.50mm)
Dimension 0.945" L x 0.315" W (24.00mm x 8.00mm)
Height - Seated (Max) 0.925" (23.50mm)
Temperature Range - Operating -40°C ~ 65°C
Other Names 478-11316,SCMR22L105MRBB0
Standard Package 230
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1302723-SCMR22L105SRBB0
Ultra Librarian 3D Model Ultra Librarian SCMR22L105SRBB0 CAD Model

Description

This electronic component is an electric double layer capacitor (EDLC), also known as a supercapacitor, manufactured by KYOCERA AVX.

  • Win Source Part Number: 1302723-SCMR22L105SRBB0
  • Category: EDLCs
  • Capacitance: 1 F
  • Tolerance: -10%, +30%
  • Rated at: 9V
  • ESR (Equivalent Series Resistance): 350mOhm @ 1kHz
  • Lifetime @ Temperature: 1000 Hrs @ 65°C
  • Mounting: Through Hole
  • Package/Case: Radial Can
  • Operating Temperature Range: -40°C ~ 65°C
  • REACH Status: REACH unaffected
  • HTSUS: 8532.22.0020
