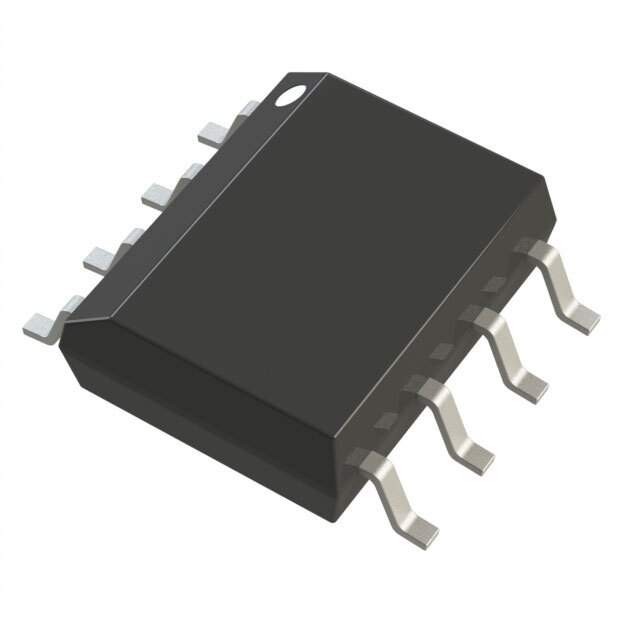

The OP07CSZ-REEL is a precision operational amplifier from Analog Devices Inc., known for its ultra-low input offset voltage and drift, making it an ideal choice for high-precision circuit applications. The device comes packaged in a convenient reel, facilitating automated assembly processes and bulk handling for manufacturers and hobbyists alike.

Key Features

• Ultra-Low Offset Voltage: The OP07CSZ-REEL boasts an input offset voltage of just 75 µV max for OP07E, which is exceptional for maintaining accuracy in your circuit designs.
• Very Low Offset Voltage Drift: With a drift of only 1.3 µV/°C max for OP07E, the device ensures stability over varying temperatures, making it suitable for sensitive applications.
• Low Noise: This operational amplifier has a low noise density of 0.6 µV p-p (0.1 Hz to 10 Hz), minimizing the interference in signal processing.
• High Input Impedance: The high input impedance of the OP07CSZ-REEL minimizes the loading effect on the input signal source, preserving signal integrity.
• Wide Supply Range: The device can operate from ±3 V to ±18 V dual supply, providing flexibility in various types of circuit configurations.

Applications

The OP07CSZ-REEL is versatile and can be used in a multitude of applications that require high precision and stability. These include:

• Instrumentation
• Analog computing
• Signal conditioning
• Data acquisition systems
• Industrial controls
• Professional audio equipment

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality, and the OP07CSZ-REEL is no exception. Each component is rigorously tested to ensure it meets the high standards expected by engineers and designers. The reel packaging not only provides convenience but also helps protect the integrity of each operational amplifier during shipping and handling.
