AD822ARMZ-REEL Precision Rail-to-Rail Operational Amplifier

The AD822ARMZ-REEL from Analog Devices Inc. is a high-performance, precision operational amplifier on a single chip. This op-amp is part of a product line that is known for its rail-to-rail input and output swing capabilities, allowing for the full range of input and output to be within the power supply boundaries. This feature is particularly beneficial in single-supply applications where the maximum dynamic range is desired.

The AD822ARMZ-REEL is designed to operate with a power supply range of 3V to 36V, or ±1.5V to ±18V for dual supplies, making it extremely versatile for a wide range of applications. It boasts a low supply current of just 800 µA per amplifier at 5V, which is ideal for battery-powered devices and energy-efficient applications.

This operational amplifier features a slew rate of 1.2 V/µs and a bandwidth of 1.8 MHz. These specifications make it suitable for applications that require a balance between speed and power consumption. The AD822ARMZ-REEL also has a low input bias current and a low offset voltage, which ensures high accuracy and stability in high-impedance sensor interfaces and precision data acquisition systems.

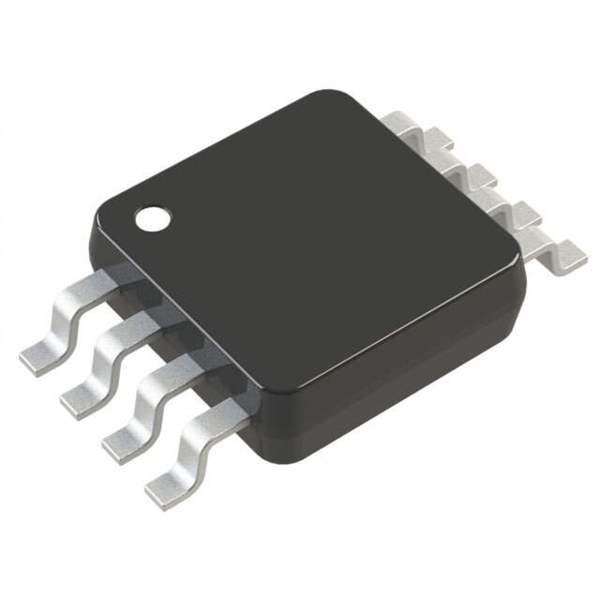

The AD822ARMZ-REEL comes in a compact surface-mount package, specifically in the 8-lead MSOP (Mini Small Outline Package), which is conducive to space-constrained applications. The "REEL" designation indicates that this product is available in tape and reel packaging, which is optimized for automated assembly processes, ensuring efficient and reliable production runs.

Applications for the AD822ARMZ-REEL include portable and battery-powered instruments, medical devices, and sensor signal conditioning. Its robust design also makes it suitable for industrial process controls, A/D buffer amplifiers, and many other precision analog functions that require a high level of accuracy and reliability.

With its precision specifications, low power consumption, and rail-to-rail input/output, the AD822ARMZ-REEL from Analog Devices Inc. is an excellent choice for designers looking for a high-quality operational amplifier that can deliver consistent performance across a broad range of applications.
