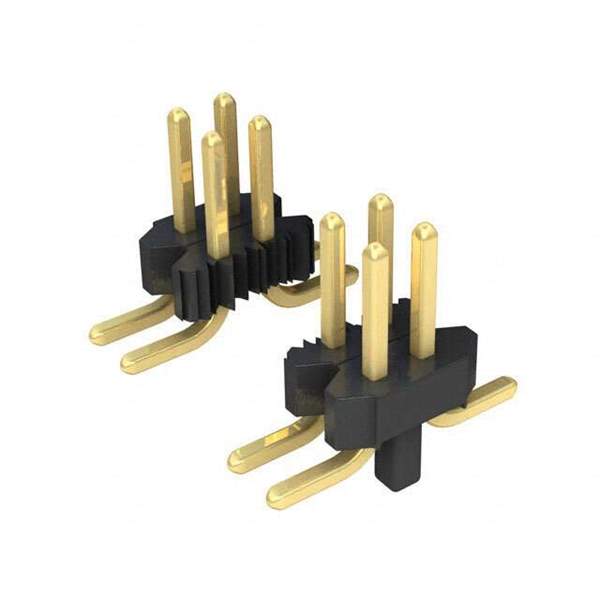

20021121-00014T4LF Real Image
Same model may have multiple batches, images only for reference.

20021121-00014T4LF

Part No 20021121-00014T4LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 1.27MM / Connector Header Surface Mount 14 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Minitek127® 1.27mm
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 125VAC
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number 20021121
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2002112100014T4LF,2266-20021121-00014T4LF,10122279-314000TLF,609-3730
Standard Package 66
Win Source Part Number 1148769-20021121-00014T4LF
Ultra Librarian 3D Model Ultra Librarian 20021121-00014T4LF CAD Model

Description

The Minitek127® 1.27mm Header is a high-quality connector designed for use in a variety of applications and manufactured by Amphenol.

  • Contact Material: Copper alloy
  • Voltage Rating: 125VAC
  • Mounting Type: SMD (SMT)
  • Fastening Type: Push-pull
  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold
  • Ideal For: Board to board applications
  • RoHS Compliant: Yes
  • REACH SVHC: No
  • Current Rating: 1A per contact
