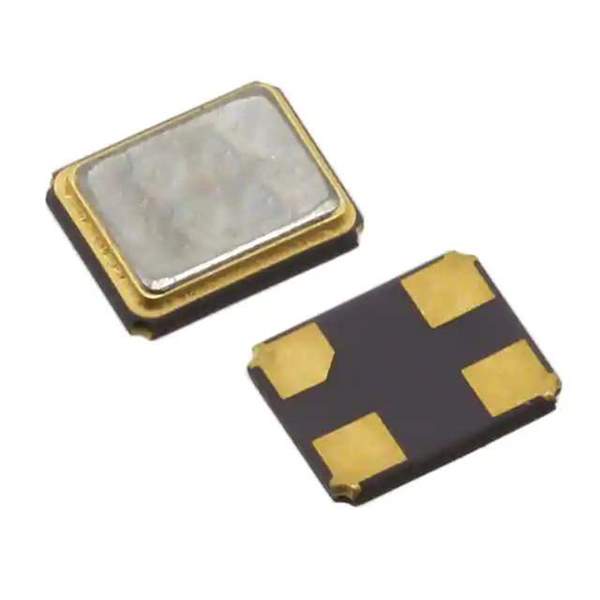

ABM8-16.000MHZ-7-1-U-T Real Image
Same model may have multiple batches, images only for reference.

ABM8-16.000MHZ-7-1-U-T

Part No ABM8-16.000MHZ-7-1-U-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 16.0000MHZ 7PF SMD / 16 MHz ±10ppm Crystal 7pF 70 Ohms 4-SMD, No Lead
Datasheet
ABM8-16.000MHZ-7-1-U-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABM8
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 7pF
ESR (Equivalent Series Resistance) 70 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 859183-ABM8-16.000MHZ-7-1-U-T
Ultra Librarian 3D Model Ultra Librarian ABM8-16.000MHZ-7-1-U-T CAD Model

Description

The 859183-ABM8-16.000MHZ-7-1-U-T is a MHz crystal from the ABM8 series by Abracon LLC.

  • Frequency: 16 MHz
  • Frequency Tolerance: ±10ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 7pF
  • Package Type: 4-SMD, No Lead
  • Mounting: Surface mountable
  • Size Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Seated Height: 0.031" (0.80mm)
  • Temperature Range: -10°C to 60°C
  • ESR: 70 Ohms
  • Standard Package: 1,000 pcs
  • Product Status: Active
  • Applications: Microcontrollers, digital circuits, and communication devices.
