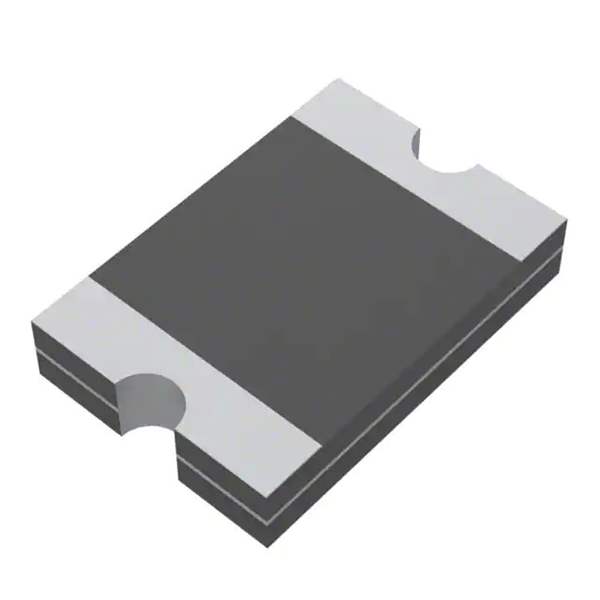

SMD1812B200TF/16 Yageo
Same model may have multiple batches, images only for reference.

SMD1812B200TF/16

Part No SMD1812B200TF/16
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 16V 2 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
SMD1812B200TF/16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Package Tape & Reel
Product Status Active
Time to Trip 2 s
Resistance - Initial (Ri) (Min) 20 mOhms
Resistance - Post Trip (R1) (Max) 75 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Height - Seated (Max) 0.039" (1.00mm)
Thickness (Max) 0.079" (2.00mm)
Lead Spacing -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361684-SMD1812B200TF/16
Approval Agency cUL, TUV, UL
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Package / Case 1812 (4532 Metric), Concave
Current - Max 100 A
Current - Trip (It) 3.5 A
Current - Hold (Ih) (Max) 2 A
Voltage - Max 16V
Type Polymeric
Series SMD1812
Ultra Librarian 3D Model Ultra Librarian SMD1812B200TF/16 CAD Model

Description

The SMD1812B200TF/16 is a surface mount PTC resettable fuse from YAGEO.

  • Product: PTC Resettable Fuse
  • Manufacturer: YAGEO
  • Series: SMD1812
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Maximum Current: 100A
  • Maximum Voltage: 16V
  • Trip Current: 3.5A
  • Time to Trip: 2 seconds
  • Resistance (Initial): 20 mOhms
  • Resistance (Post-Trip): 75 mOhms
