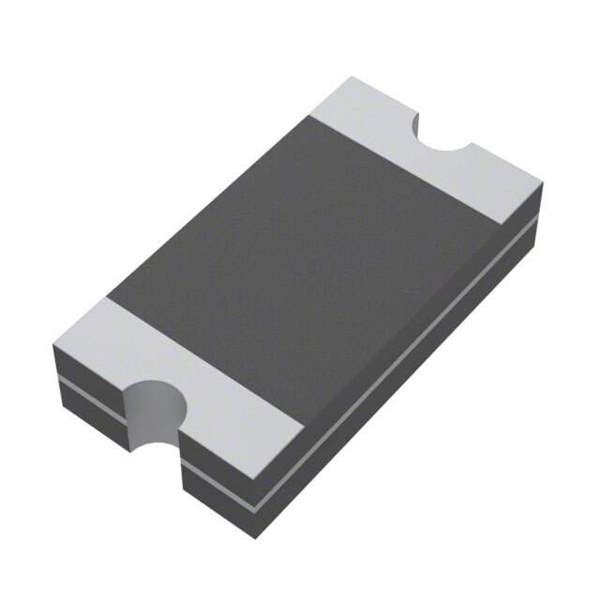

SMD0603B050TF Real Image
Same model may have multiple batches, images only for reference.

SMD0603B050TF

Part No SMD0603B050TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 6V 500 mA Ih Surface Mount 0603 (1608 Metric), Concave
Datasheet
SMD0603B050TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr YAGEO
Series SMD0603
Package Tape & Reel
Type Polymeric
Voltage - Max 6V
Current - Max 40 A
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 1 A
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 100 mOhms
Resistance - Post Trip (R1) (Max) 680 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric), Concave
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Max) 0.061" (1.55mm)
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names 13-SMD0603B050TFDKR,13-SMD0603B050TFCT,13-SMD0603B050TFTR
Standard Package 4,000
Win Source Part Number 1171280-SMD0603B050TF
Ultra Librarian 3D Model Ultra Librarian SMD0603B050TF CAD Model

Description

The SMD0603B050TF is a polymeric PTC resettable fuse manufactured by YAGEO.

  • Maximum Voltage Rating: 6V
  • Maximum Current Rating: 40A
  • Current Hold: 500mA
  • Current Trip: 1A
  • Trip Time: 100ms
  • Package: tape and reel
  • Standard Package: 4,000
  • Package/Case: concave 0603 (1608 Metric)
  • Thickness: 0.061" (1.55mm)
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Initial Resistance: 100 mOhms
  • Post-Trip Resistance: 680 mOhms
  • Operating Temperature Range: -40°C to 85°C
  • Approvals: cUL, TUV, and UL
