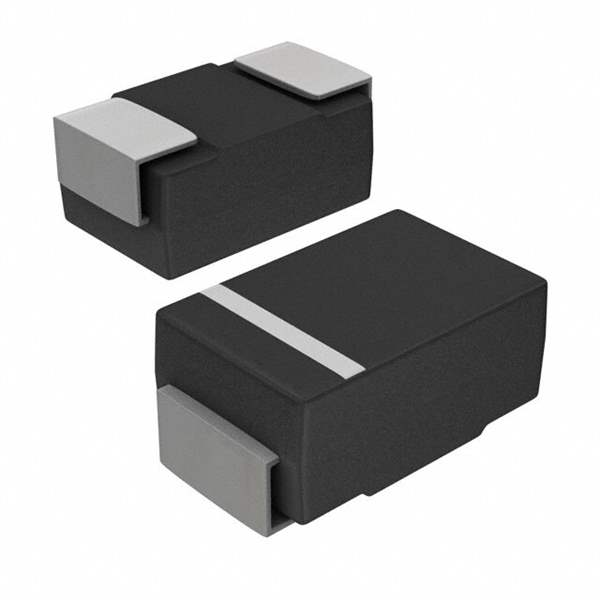

SMAJ18A/TR13 Yageo
Same model may have multiple batches, images only for reference.

SMAJ18A/TR13

Part No SMAJ18A/TR13
Manufacturer Yageo
Catalog TVS - Diodes
Description SMAJ, DO-214AC, 18V, 29.2V, REEL / 29.2V Clamp 13.7A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Datasheet
SMAJ18A/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series SMAJ
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp 29.2V
Current - Peak Pulse (10/1000µs) 13.7A
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1361875-SMAJ18A/TR13
Ultra Librarian 3D Model Ultra Librarian SMAJ18A/TR13 CAD Model

Description

The 1361875-SMAJ18A/TR13 is a TVS diode from YAGEO's SMAJ series. It is a surface mount diode with a zener type.

  • Reverse Standoff Voltage: 18V
  • Breakdown Voltage: 20V
  • Clamping Voltage: 29.2V @ a peak pulse current of 13.7A
  • Power Rating: 400W
  • Operating Temperature: -55°C to 150°C
  • Package Type: DO-214AC (SMA)
  • Application: General-purpose circuit protection against transient voltage spikes and surges
