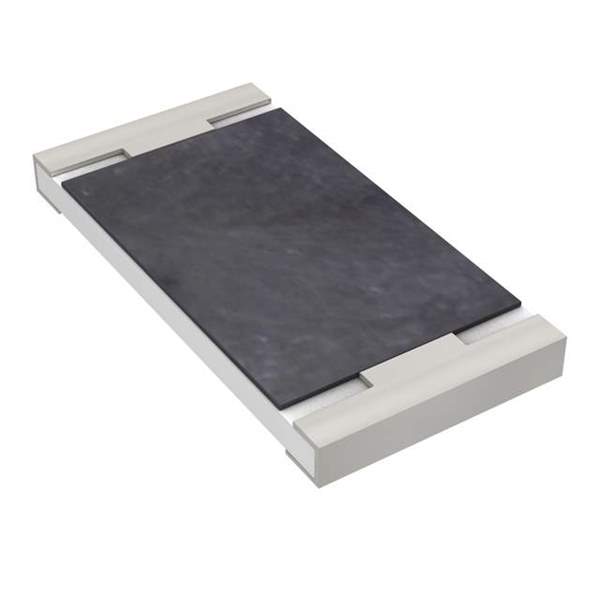

PA2512FKF7W0R005E Real Image
Same model may have multiple batches, images only for reference.

PA2512FKF7W0R005E

Part No PA2512FKF7W0R005E
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 2W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 19 Weeks
Features 5 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
Manufacturer Yageo
Series PA_E
Package Reel - TR
Operating Temperature Range -55°C ~ 170°C
Package 2512 (6432 Metric)
Case / Package 2512
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number YAG2145TR, YAG2145DKR, YAG2145CT
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888515-PA2512FKF7W0R005E
Ultra Librarian 3D Model Ultra Librarian PA2512FKF7W0R005E CAD Model

Description

This Yageo chip resistor is perfect for use in automotive applications.

  • Resistance: 5 mOhms
  • Tolerance: ±1%
  • Power Rating: 2W
  • Application: Current Sensing
  • Element: Metal element
  • Feature: Moisture-resistant
  • Operating Temperature: -55°C to 170°C
  • Package: 2512 (6432 Metric)
  • Package Type: Reel
  • Series: PA_E series
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 19 weeks
  • REACH: Unaffected
  • HTSUS: 8533.21.0030
