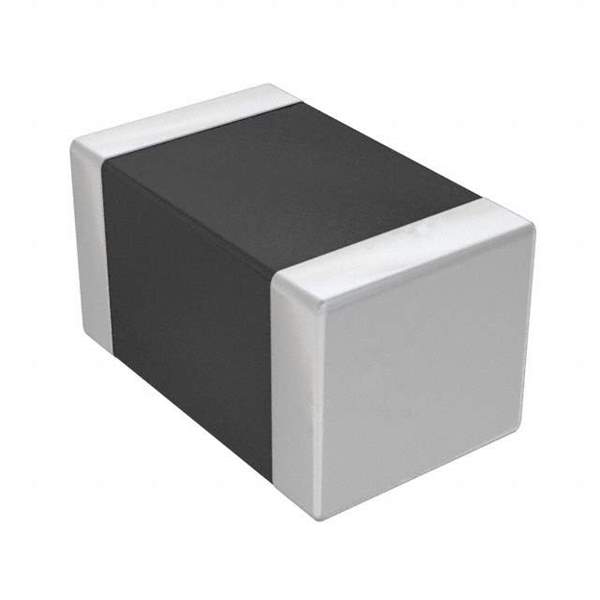

742792097 Real Image
Same model may have multiple batches, images only for reference.

742792097

Part No 742792097
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1.5K OHM 0805 1LN
Datasheet
742792097 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Wurth Electronics Inc
Series WE-CBF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 1.5 kOhms @ 100 MHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 300mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Height (Max) 0.035" (0.90mm)
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857162-742792097
Ultra Librarian 3D Model Ultra Librarian 742792097 CAD Model

Description

The WE-CBF series is a ferrite bead and chip filter designed for signal line applications.

  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height: 0.035" (0.90mm)
  • Impedance @ 100 MHz frequency: 1.5 kOhms
  • Current Rating: 1A
  • DC Resistance (DCR): 300mOhm
  • Mounting: Surface Mount
  • Package: Tape & Reel
  • Operating Temperature Range: -55°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Product Status: Active
