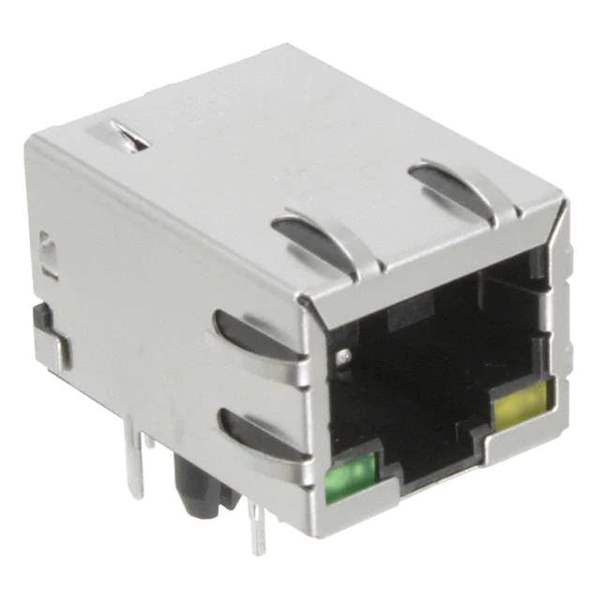

RB1-125BAG1A Real Image
Same model may have multiple batches, images only for reference.

RB1-125BAG1A

Part No RB1-125BAG1A
Manufacturer WIZnet
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet
RB1-125BAG1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr WIZnet
Package Tray
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.525" (13.33mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness Flash
Shield Material Stainless Steel
Housing Material Thermoplastic
Base Product Number RB1-125
Standard Package 420 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 891200-RB1-125BAG1A
Ultra Librarian 3D Model Ultra Librarian RB1-125BAG1A CAD Model

Description

The RB1-125BAG1A is a modular connector jack with magnetics from WIZnet.

  • Design: board lock design for secure connection
  • Connector Type: RJ45
  • Rows: one row of contacts
  • Termination Method: solder
  • Contact Finish: gold with flash thickness
  • Shielding: shielded with EMI finger for better signal integrity
  • Housing Material: thermoplastic housing material
  • Applications: 10/100 Base-T and AutoMDIX applications
  • Orientation: 90° angle (right)
  • Ports: one port
  • Mounting: through-hole mountable
  • Temperature Range: 0°C to 70°C
