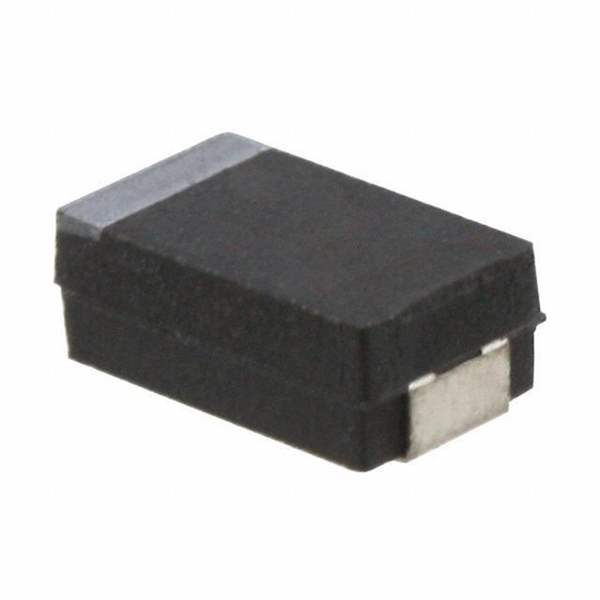

293D226X9025D2TE3 Vishay
Same model may have multiple batches, images only for reference.

293D226X9025D2TE3

Part No 293D226X9025D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description Cap Tant Solid 22uF 25V D CASE 10% (7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.7 Ohm 125°C T/R / CAP TANT 22UF 25V 10% 2917
Datasheet
293D226X9025D2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±10%
Voltage Rating 25V
Type Molded
ESR 700 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 097203-293D226X9025D2TE3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 293D
Introduction Date February 23, 2005
ECCN EAR99
Country of Origin China, Israel
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 293D226X9025D2TE3 CAD Model

Description

Product Overview

The 293D226X9025D2TE3 is a high-capacity tantalum capacitor designed for maximum service life and consistent performance under diverse environmental conditions.

Features and Benefits

  • Capacitance: 22μF
  • Voltage Rating: 25V
  • Durable for high-temperature applications
  • Minimal ESR for high-frequency circuits

Applications

  • Robotics and automation equipment
  • Audio and video devices
  • Embedded control systems

Additional Details

With its robust performance in high-temperature environments, the 293D226X9025D2TE3 is perfectly suited for applications in robotics and automation where operational reliability is essential. Its efficient ESR performance makes it an optimal choice for audio and video electronics requiring high-frequency stability.
