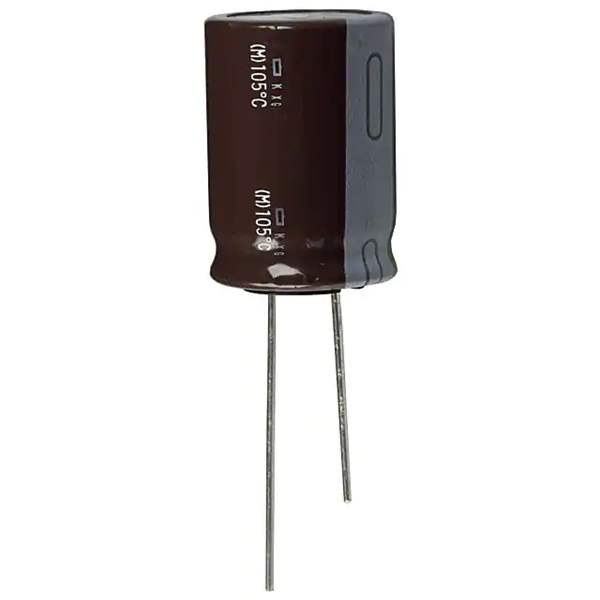

EKXG401ELL820MM25S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKXG401ELL820MM25S

Part No EKXG401ELL820MM25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 82UF 20% 400V RADIAL / 82 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KXG
Package Bulk
Product Status Active
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 610 mA @ 120 Hz
Ripple Current @ High Frequency 1.525 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358092-EKXG401ELL820MM25S
Ultra Librarian 3D Model Ultra Librarian EKXG401ELL820MM25S CAD Model

Description

The 1358092-EKXG401ELL820MM25S is an aluminum electrolytic capacitor from United Chemi-Con's KXG series.

  • Capacitance: 82 µF
  • Voltage Rating: 400 V
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Lifetime: 10,000 hours @ 105°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Ripple Current (120 Hz): 610 mA
  • Ripple Current (100 kHz): 1.525 A
  • Lead Spacing: 0.295" (7.50mm)
  • Size/Dimension: 0.709" Diameter (18.00mm)
  • Maximum Seated Height: 0.984" (25.00mm)
  • Product Status: Active
  • REACH: Unaffected
