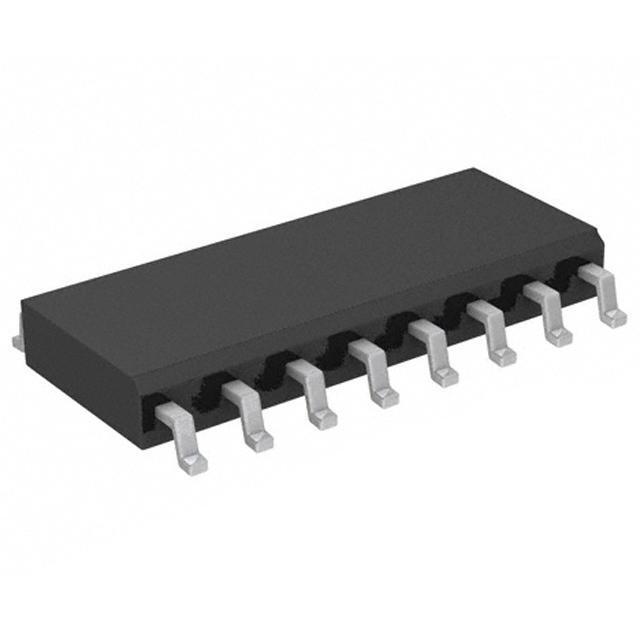

ULN2003AFWG Toshiba Semiconductor and Storage ULN2003AFWG Real Image1 ULN2003AFWG Real Image2 ULN2003AFWG Real Image3 ULN2003AFWG Real Image4 ULN2003AFWG Real Image5 ULN2003AFWG real image ULN2003AFWG label picture
ULN2003AFWG Toshiba Semiconductor and Storage ULN2003AFWG Real Image1 ULN2003AFWG Real Image2 ULN2003AFWG Real Image3 ULN2003AFWG Real Image4 ULN2003AFWG Real Image5 ULN2003AFWG real image ULN2003AFWG label picture
Same model may have multiple batches, images only for reference.

ULN2003AFWG

Part No ULN2003AFWG
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR RELAY 7NPN 1:1 16SOL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Cut Reel
Switch Type Relay, Solenoid Driver
Number of Outputs 7
Output Type NPN
Voltage - Load 50V (Max)
Supply Voltage - Operating Not Required
Current - Output (Max) 500mA
Input Type Inverting
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-SOL
Win Source Part Number 094431-ULN2003AFWG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Lighting, Power Management, Consumer Electronics, Industrial
Ultra Librarian 3D Model Ultra Librarian ULN2003AFWG CAD Model

Description

The ULN2003AFWG is a relay and solenoid driver IC manufactured by Toshiba Semiconductor and Storage.

  • Output Current: 500mA
  • Voltage Load: 50V
  • Operating Temperature Range: -40°C to 85°C
