TPD2E001DZDR Low-Capacitance 2-Channel ESD Protection Device by Texas Instruments

The TPD2E001DZDR is a highly integrated transient voltage suppressor (TVS) designed by Texas Instruments to protect sensitive electronics from electrostatic discharge (ESD) and other voltage-induced transient events. This device is particularly useful for safeguarding high-speed data lines and interfaces such as USB, HDMI, and other communication ports that are susceptible to damage from ESD events.

Featuring a low-capacitance design, the TPD2E001DZDR is optimized to maintain signal integrity while providing robust protection for sensitive circuits. With a typical capacitance of only 0.8 pF per channel, this device ensures minimal impact on the performance of high-speed data lines, making it an ideal choice for applications where maintaining signal quality is paramount.

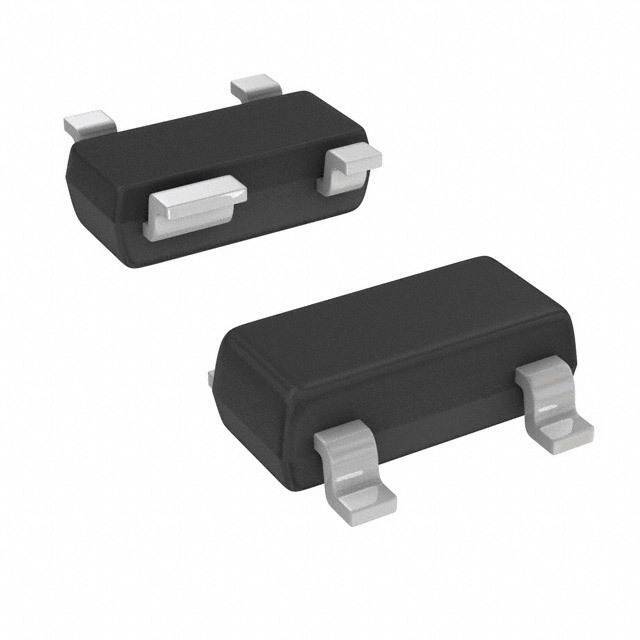

The device comes in a compact SOT-5X3 package, which is not only space-saving but also offers a layout that is easy to integrate into existing PCB designs. The TPD2E001DZDR provides ESD protection up to ±8 kV contact discharge and ±15 kV air-gap discharge, as per the IEC 61000-4-2 international standard, ensuring that your electronics are shielded against common ESD threats encountered in everyday use.

Moreover, the TPD2E001DZDR is capable of withstanding surge protection events, offering a peak pulse power rating of 500 W (8/20 µs). This feature provides additional peace of mind, knowing that your application is safeguarded against not only ESD but also other transient voltage occurrences.

With its low leakage current and a wide operating temperature range from -40°C to 85°C, the TPD2E001DZDR is suitable for a broad spectrum of applications ranging from consumer electronics to industrial systems. Whether it's for protecting USB ports in portable devices, HDMI inputs in multimedia equipment, or high-speed data interfaces in telecommunications hardware, the TPD2E001DZDR from Texas Instruments stands as a reliable and efficient solution for ESD protection.

For designers and engineers looking to enhance the longevity and reliability of their products, the TPD2E001DZDR offers a perfect blend of performance, size, and protection, ensuring that sensitive electronic components remain safe from the unpredictable nature of transient voltage events.
