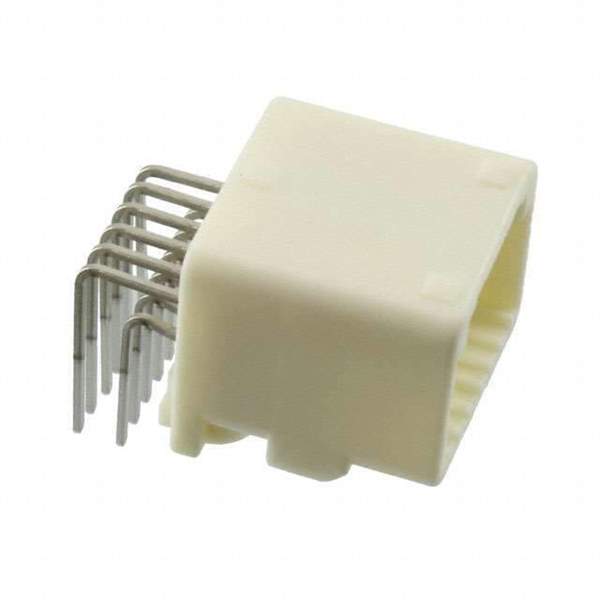

1318772-2 Real Image
Same model may have multiple batches, images only for reference.

1318772-2

Part No 1318772-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2.2MM / Connector Header Through Hole, Right Angle 12 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.217" (5.50mm)
Contact Length - Post 0.157" (4.00mm)
Insulation Height 0.610" (15.49mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 HB
Insulation Color Natural
Voltage Rating 12VDC
Applications Automotive
Base Product Number 1318772
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1318772-2-LSI,1318772-2-ND,-1318772-2-SI,-1318772-2-CSI,A126094
Standard Package 23
Win Source Part Number 995505-1318772-2
Ultra Librarian 3D Model Ultra Librarian 1318772-2 CAD Model

Description

This is a 12-position male pin header connector from TE Connectivity AMP Connectors.

  • Number of Positions: 12
  • Connection Style: Board to Cable/Wire
  • Shrouding: Shrouded with 4 Walls
  • Contact Material: Brass
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Contact Finish (Mating and Post): Tin
  • Voltage Rating: 12VDC
  • Application: Automotive
  • Temperature Range: -30°C to 105°C
  • Package: Tube
  • Standard Package: 23 pieces
  • Win Source Part Number: 995505-1318772-2
