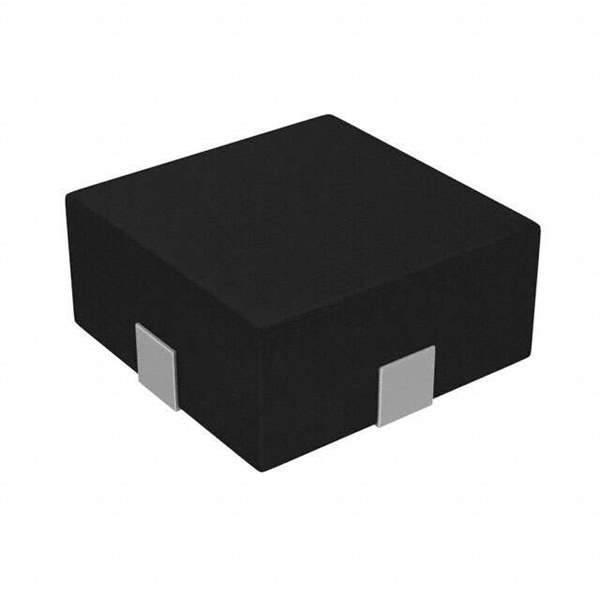

SKY13453-385LF Real Image
Same model may have multiple batches, images only for reference.

SKY13453-385LF

Part No SKY13453-385LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC SWITCH SP2T 0.01-6GHZ 6QFN
Datasheet
SKY13453-385LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Frequency - Lower 10MHz
Frequency - Upper 6GHz
Isolation @ Frequency 27dB @ 2GHz
Insertion Loss @ Frequency 0.4dB @ 2GHz
IIP3 57dBm (typ)
P1dB 33dBm
Impedance 50 Ohm
Temperature Range - Operating -30°C to 90°C
Supply Voltage - Operating 2.5 V to 3.5 V
RF Type WLAN
Case / Package 6-QFN (1x1)
Win Source Part Number 115425-SKY13453-385LF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SKY13453-385LF CAD Model

Description

The Skyworks Solutions Inc. 115425-SKY13453-385LF is a 6 GHz WLAN RF switch, which has an impedance of 50 Ohm.

  • Frequency: 6 GHz WLAN RF switch
  • Impedance: 50 Ohm
  • Package: 6-QFN (1x1)
  • Temperature Range: -30°C to 90°C
  • Isolation: 27dB @ 2GHz
  • Insertion Loss: 0.4dB @ 2GHz
  • IIP3: 57dBm (typ)
  • P1dB: 33dBm
  • Supply Voltage: 2.5 V to 3.5 V
  • Category: RF/IF and RFID
