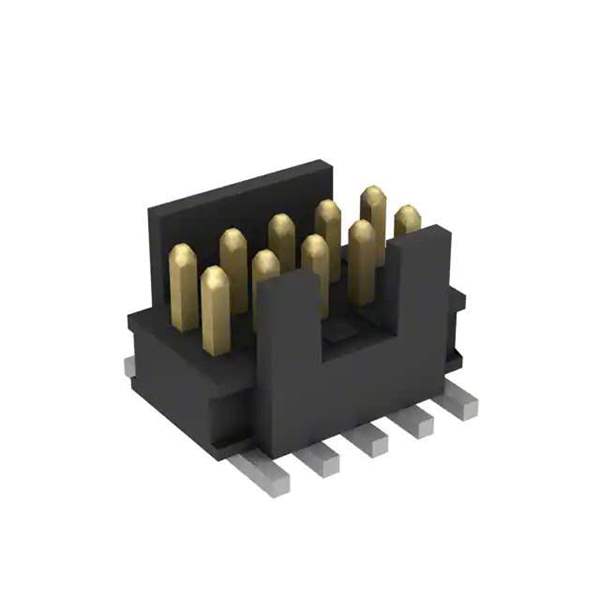

FTSH-105-01-L-DV-K Real Image
Same model may have multiple batches, images only for reference.

FTSH-105-01-L-DV-K

Part No FTSH-105-01-L-DV-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Datasheet
FTSH-105-01-L-DV-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTSH
Package Tube
Product Status Active
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.099" (2.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Shroud
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Base Product Number FTSH-105
Standard Package 92 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 848804-FTSH-105-01-L-DV-K
Ultra Librarian 3D Model Ultra Librarian FTSH-105-01-L-DV-K CAD Model

Description

The FTSH series from Samtec Inc. offers a range of male pin headers for your electronic connections and the 848804-FTSH-105-01-L-DV-K is a 10-position, 2-row header with a solder termination.

  • Fastening Type: Push-Pull
  • Design: Shrouded
  • Contact Material: Phosphor Bronze
  • Application: Board-to-Board or Cable
  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold
  • Current Rating: 3.4A per Contact
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
