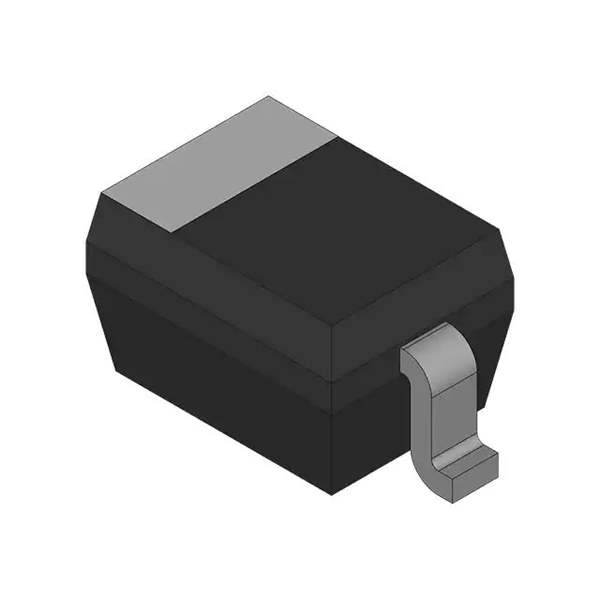

BAS316-AU_R1_000A1 Panjit
Same model may have multiple batches, images only for reference.

BAS316-AU_R1_000A1

Part No BAS316-AU_R1_000A1
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 250MA SOD323
Datasheet
BAS316-AU_R1_000A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panjit International Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 250mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 100 V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Supplier Device Package SOD-323
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number BAS316
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1367316-BAS316-AU_R1_000A1
Ultra Librarian 3D Model Ultra Librarian BAS316-AU_R1_000A1 CAD Model

Description

The BAS316-AU_R1_000A1 is a single rectifier diode from Panjit International Inc.

  • Applications: Automotive
  • Capacitance: 1.5pF @ 0V, 1MHz
  • Forward Voltage Drop: 1.25V @ 150mA
  • Maximum Average Rectified Current: 250mA
  • Maximum Reverse Leakage Current: 500nA @ 100V
  • Maximum Reverse Voltage Rating: 100V
  • Operating Temperature Range: -55°C to 150°C
  • Package: SC-90, SOD-323F
  • Reverse Recovery Time: 4ns
