Overview

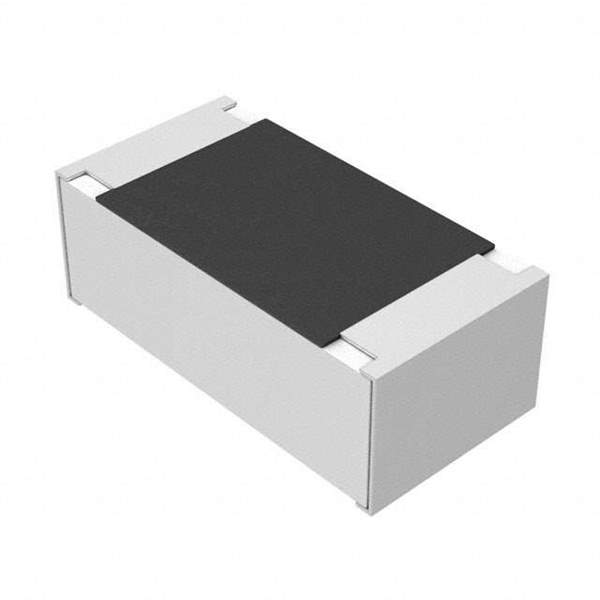

The ERA-2AEB104X is a Panasonic chip resistor designed for surface-mount (SMD) assembly, belonging to the ERA series of precision thick/thin-film resistors. It is intended for use on compact PCBs where stable resistance, good temperature characteristics, and reliable long-term performance are required. Supplied in a small SMD package, it is well suited for automated placement and reflow soldering. Typical parameters for this class include low power ratings in the sub-1 W range, standardized resistance values, and operation over common low-voltage logic and analog signal ranges. This device is typically used for signal conditioning, biasing, pull-up/pull-down functions, and general-purpose current limiting in digital and analog circuits.

Applications

• General-purpose biasing, pull-up and pull-down networks in microcontroller and FPGA-based designs
• Signal conditioning and feedback networks in analog front ends, op-amp circuits, and sensor interfaces
• Voltage dividers and reference networks in power management and battery-powered equipment
• Measurement and control circuitry in industrial automation, PLC I/O boards, and instrumentation
• Consumer electronics such as set-top boxes, audio/video equipment, and home appliances
• Communications and IoT devices where compact, reliable SMD resistors are required

Alternatives & Replacement

Depending on stock availability, target cost, and design constraints, it may be necessary to select an alternative to the ERA-2AEB104X. When doing so, engineers should pay close attention to resistance value, tolerance, power rating, temperature coefficient, package size, and qualification level to ensure equivalent performance in the final application.

Recommended alternatives:

• WR06X3012FTL – Walsin Technology Corporation (Redesign Required)
• ERJ-2RKF3012X – Panasonic (Redesign Required)
• WR06X203 JTL – Walsin Technology Corporation (Redesign Required)
• AC0603JR-074K7L – Yageo (Redesign Required)
• RC0603FR-07390RL – Yageo (Redesign Required)
• RC2012F101CS – Samsung (Redesign Required)
• RC0402FR-1322KL – Yageo (Redesign Required)
• RC0402FR-07510KL – Yageo (Redesign Required)
• RC0402FR-13100RL – Yageo (Redesign Required)
• RMCF0402FT2K55 – Stackpole Electronics Inc. (Redesign Required)

Engineering note: All proposed alternatives are marked as “Redesign Required,” which indicates that the package, footprint, or some electrical parameters may not be drop-in compatible. Before using any replacement, verify the resistance value, tolerance, power rating, voltage rating, temperature coefficient, and physical size against the original ERA-2AEB104X, and review PCB land patterns and derating to ensure safe operation under all operating conditions.
