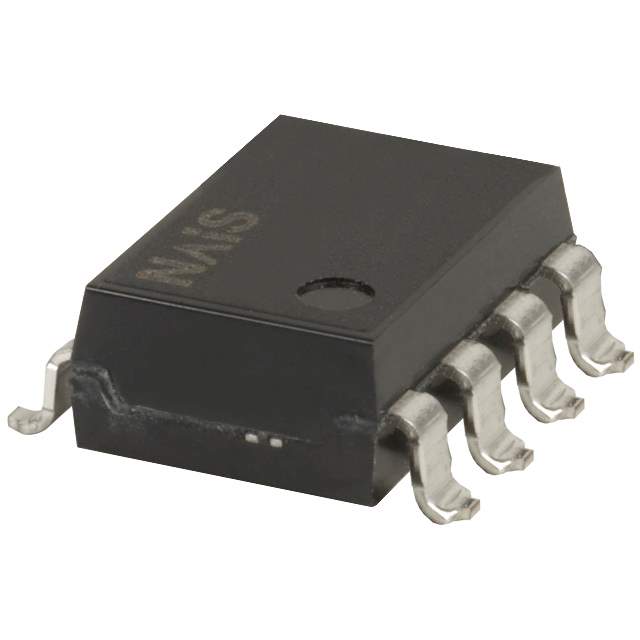

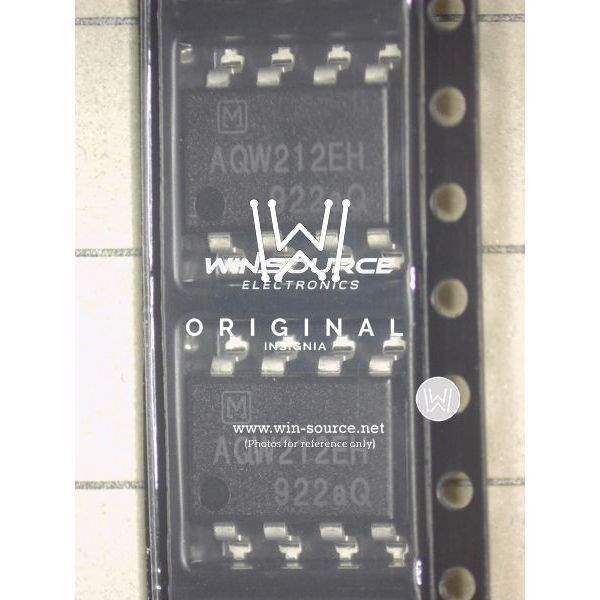

AQW212EHAX Real Image AQW212EHAX real image AQW212EHAX label picture
AQW212EHAX Real Image AQW212EHAX real image AQW212EHAX label picture
Same model may have multiple batches, images only for reference.

AQW212EHAX

Part No AQW212EHAX
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY OPTO AC/DC 60V 500MA 8-SMD / Solid State Relay 50mA 1.5V DC-IN 0.6A 48V AC/DC-OUT 8-Pin DIP SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series PhotoMOS AQW
Packaging Reel package
Circuit DPST (2 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 2.5 Ohm
Load Current 500mA
Voltage - Input 1.14VDC
Voltage - Load 0 ~ 60 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm)
Manufacturer Package 8-SMD
Relay Type Relay
Win Source Part Number 768751-AQW212EHAX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name AQW212EH
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQW212EHAX CAD Model

Description

Panasonic Electric Works presents the AQW212EHAX, a DPST (2 Form A) photoMOS relay with a load current of 500mA and a voltage load of 0~60V.

  • Package: 8-SMD
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Estimated EOL Date: 2029
