Product Overview: NLV17SZ04DFT2G from ON Semiconductor

The NLV17SZ04DFT2G is a high-performance, single inverter gate designed and manufactured by ON Semiconductor, a renowned leader in energy-efficient innovations. This device is part of ON Semiconductor's extensive range of logic gate products that are known for their reliability and efficiency. It is specifically engineered to meet the stringent requirements of automotive and industrial applications.

Key Features

• Logic Type: Single Inverter Gate
• Supply Voltage Range: 1.65V to 5.5V, accommodating a wide range of applications and ensuring compatibility with both low-voltage and standard logic level systems.
• High Tolerance: Capable of operating within a temperature range of -55°C to +125°C, making it suitable for harsh environments.
• Output Drive Capability: Offers a ±24 mA output drive at 3.3V, providing robust drive power for connected components.

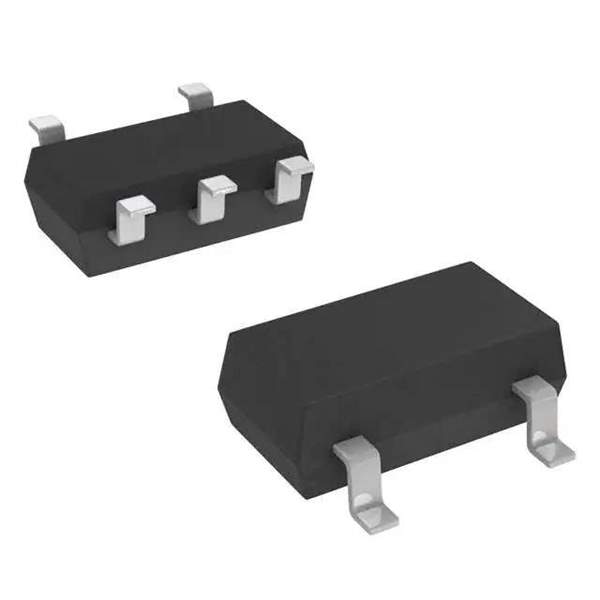

• Package: Comes in a small, space-saving SC-88A (SOT-353) package, which is ideal for compact circuit designs.
• Automotive Qualified: This product is AEC-Q100 qualified, ensuring that it meets the automotive industry's reliability standards for electronic components.

Applications

The NLV17SZ04DFT2G is versatile and can be used in a variety of applications, including but not limited to:

• Automotive systems
• Industrial controls
• Power management circuits
• Signal processing
• Logic level translation

Environmental and Quality Certifications

ON Semiconductor is committed to environmental stewardship and product quality. The NLV17SZ04DFT2G adheres to several environmental standards, including:

• Pb-Free and RoHS compliant
• Halogen-free

With its robust design and versatile functionality, the NLV17SZ04DFT2G from ON Semiconductor is an excellent choice for designers looking to incorporate a reliable single inverter gate into their automotive or industrial electronic systems. Its compliance with environmental standards and automotive qualifications further underscores its suitability for demanding applications.
