The ON Semiconductor MM5Z3V6T1G is a robust voltage regulator diode designed to provide precision voltage regulation and protection for various electronic applications. This Zener diode offers a nominal Zener voltage of 3.6 volts, making it an ideal choice for applications that require a regulated voltage in a small package.

Key Features

• Zener Voltage: The MM5Z3V6T1G provides a precise Zener voltage of 3.6V, ensuring reliable voltage regulation for sensitive circuits.
• Power Dissipation: With a power dissipation of 200 mW, this Zener diode can handle reasonable amounts of power, making it suitable for a wide range of applications.

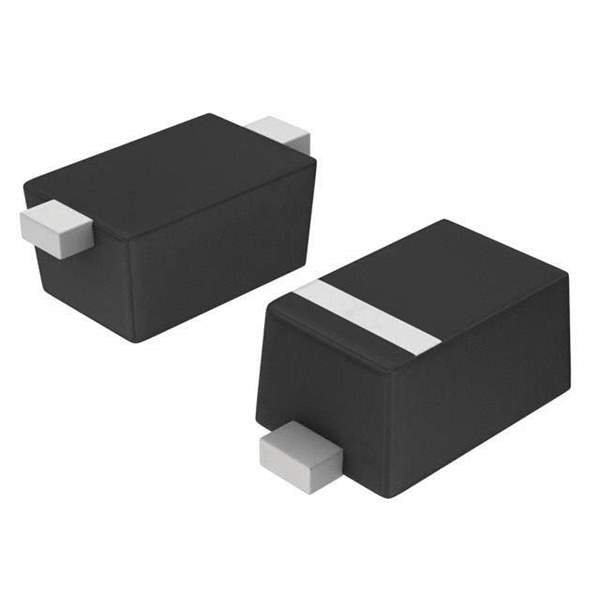

• Package: The SOD-523 package is incredibly compact, allowing for high-density mounting and saving valuable board space in your designs.
• Operating Temperature: It is designed to operate over a broad temperature range from -55°C to +150°C, accommodating various environmental conditions.
• Tolerance: The Zener voltage tolerance is ±5%, which provides a balance between precision and flexibility for circuit design.

Applications

The MM5Z3V6T1G is versatile and can be used in a multitude of applications. It is commonly used in:

• Voltage regulation modules
• Overvoltage and surge protection circuits
• Switching power supplies
• Consumer electronics
• Computing devices

Reliability and Quality

ON Semiconductor is known for its commitment to quality and reliability. The MM5Z3V6T1G is manufactured with the high standards that ON Semiconductor is known for, ensuring that each component performs to the specifications and has a long operational lifespan.

Environmental Compliance

This product is compliant with RoHS (Restriction of Hazardous Substances), indicating that it is manufactured with environmentally safe materials and processes. The MM5Z3V6T1G is also lead-free, making it suitable for use in applications where lead content is a concern.

Conclusion

Whether you are designing consumer electronics, industrial control systems, or automotive applications, the ON Semiconductor MM5Z3V6T1G Zener diode is an excellent choice for stable voltage regulation and circuit protection. Its compact size, power handling capabilities, and temperature range make it a versatile component for your electronic designs.
